Model: DC-120F | DC-F Series Leveling Casters

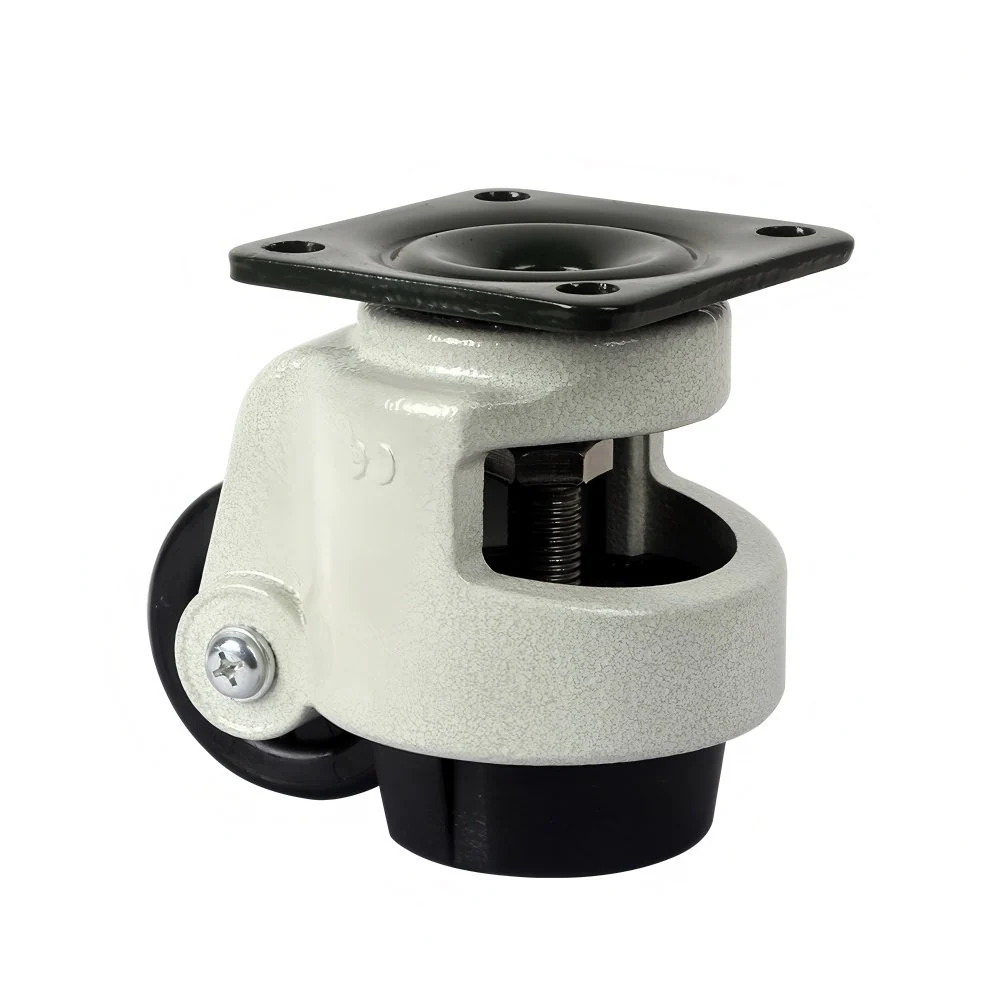

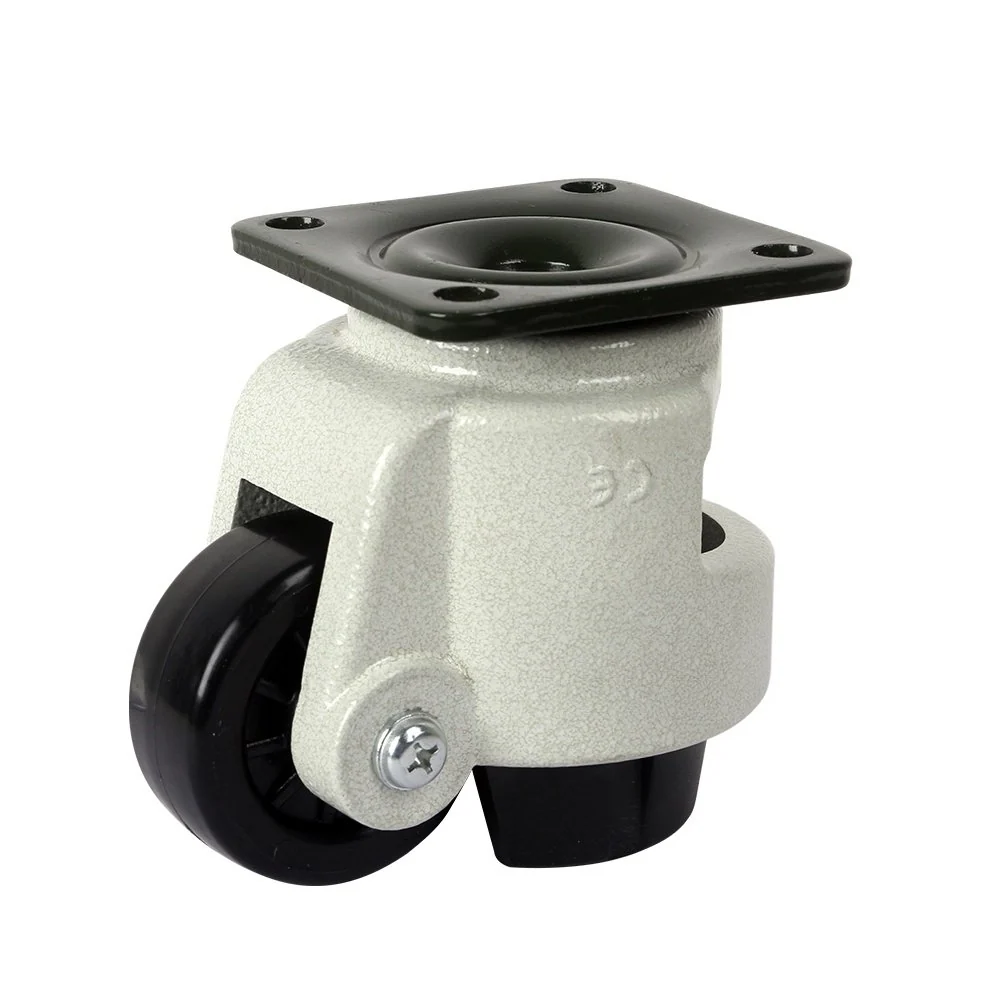

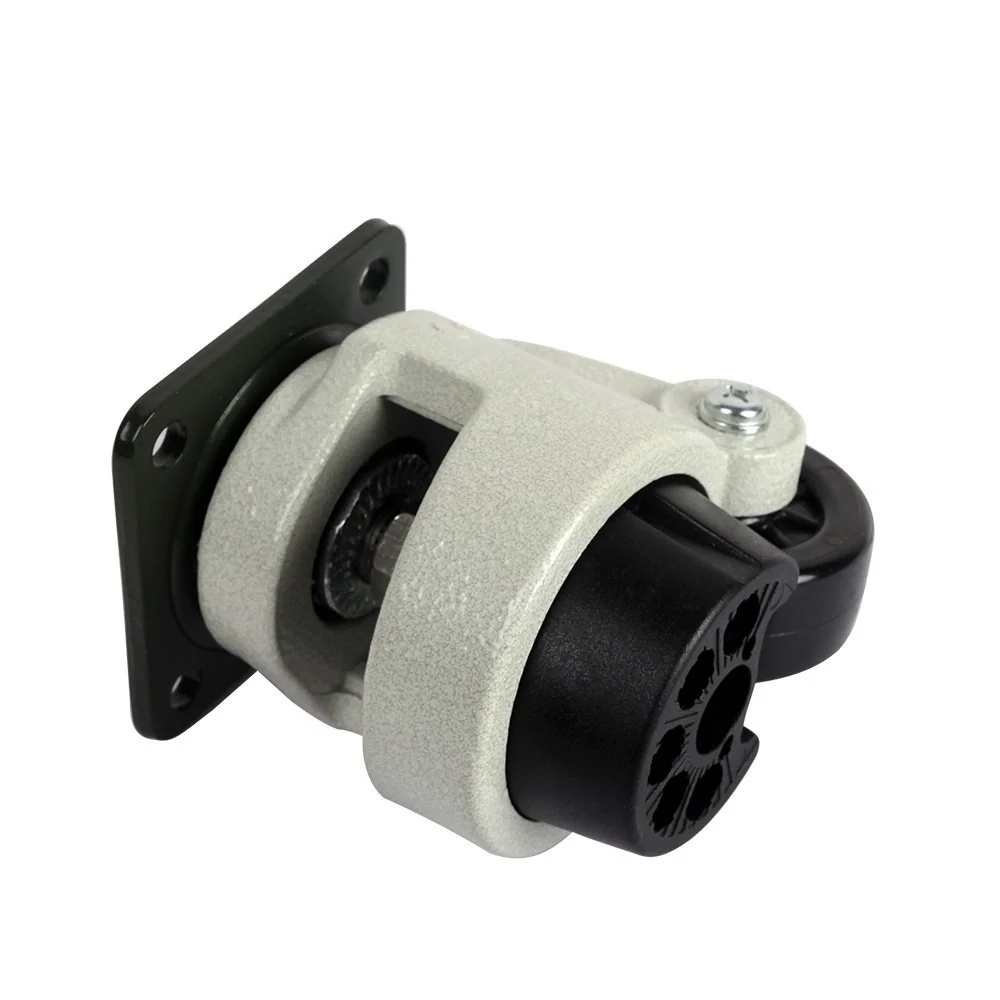

DC-120F Ultra Heavy Duty Leveling Caster — Wide Wheel

Nylon Wheel 73mm · Load 750 kg (1655 lbs) · Top Plate (4 holes)

73mm
Wheel Ø
750 kg (1655 lbs)
Load / Caster
123+12
Install Height
Top Plate (4 holes)
Mounting

Product Overview

The DC-120F is a super heavy-duty leveling caster — also known as a Fuma wheel — with a 95 × 95mm top plate for bolt-through mounting. It does two jobs in one unit: roll the equipment into position on the 73mm nylon wheel, then turn the built-in leveling pad down to take the load off the wheel and lock the machine perfectly level on uneven floors. Rated 750 kg (1655 lbs) per caster, 1500 kg (3305 lbs) on a set of four. One-piece formed steel housing with a 6.5mm thick mounting plate.

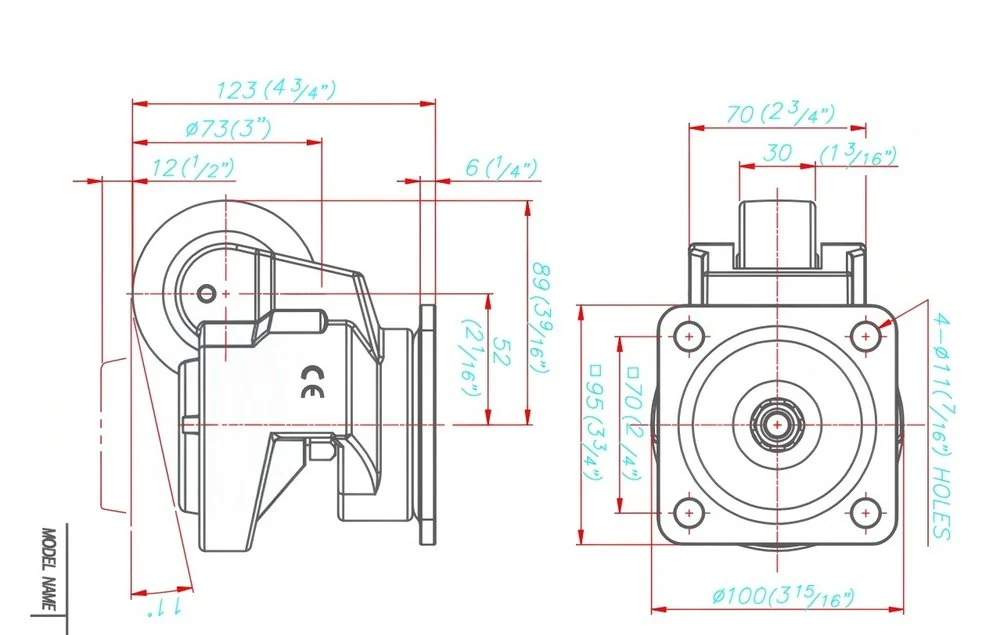

Technical Specifications

ModelDC-120F
TypeLEVELING CASTER
Wheel MaterialNYLON
Installation Height123 + 12 mm (adjustable)
Wheel Diameter73mm
Wheel Width30mm
Top Plate Size95 × 95 mm
Top Plate Thickness6.5mm
Screw Hole DiameterØ11mm
Hole Spacing70 × 70 mm
Load Capacity (1 pc)750 kg (1655 lbs)
Load Capacity (4 pcs)1500 kg (3305 lbs)
CertificationCE
MOQ4 pcs (sample order)
Port of LoadingNingbo
Net Weight6.72 kg / 4 pcs
Gross Weight7.0 kg / 4 pcs
Inner Box29 × 20 × 13 cm / 4 pcs
Master Carton41.5 × 30 × 28 cm / 16 pcs

Need CAD Drawings?

We supply 2D DXF and 3D STEP files for the DC-120F, plus mounting-hole templates for your design team. Leave your contact details below and tell us which format you need — our engineer will send the drawings within 24 hours, free of charge.

📐 Request CAD Drawing Or Send an Inquiry

Key Features

Move, level and lock in one unit — no separate levelling feet required
Pre-drilled top plate (95 × 95mm) with 70 × 70mm hole spacing for fast bolt-through mounting
High-quality nylon wheel: wear-resistant, non-marking and quiet in use
One-piece formed pressed steel housing, zinc plated for rust resistance
CE certified, 100% load-tested before shipment
MOQ 4 pcs — mixed sample orders welcome

Typical Applications

CNC machine tools, semiconductor and electronics manufacturing equipment, printing and packaging machinery, medical and laboratory equipment, ATM and vending cabinets, aluminium profile frames, display racks — any equipment that must be wheeled into place and then levelled on site.
