Fuma Wheel DC-120S Fuma leveling caster, Threaded Stem Mount

Get a Quote 🎁 Request Free Sample 📐 Request CAD Drawing

🎁

Free Sample — Evaluate before you order. Contact us with your shipping details.

Model: DC-120S | DC-S Series Leveling Casters (Threaded Stem)

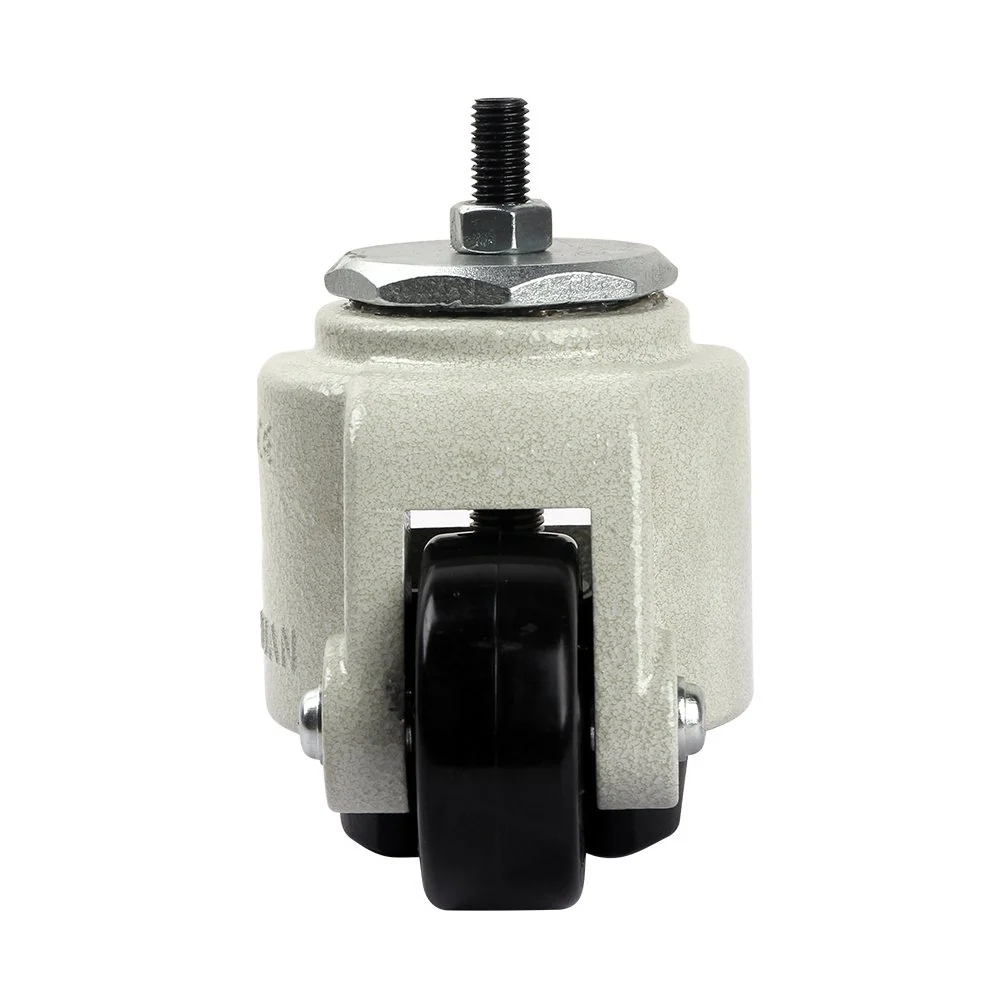

DC-120S Ultra Heavy Duty Caster — Threaded Stem M16

Name: DC-120S Ultra Heavy Duty Caster — Threaded Stem M16
Brand: DancyCastor
SKU: DC-120S

Nylon Wheel 73mm · Load 1000 kg (2205 lbs) · Threaded Stem Mount

73mm

Wheel Ø

1000 kg (2205 lbs)

Load / Caster

122+12

Install Height

Threaded Stem Mount

Mounting

Product Overview

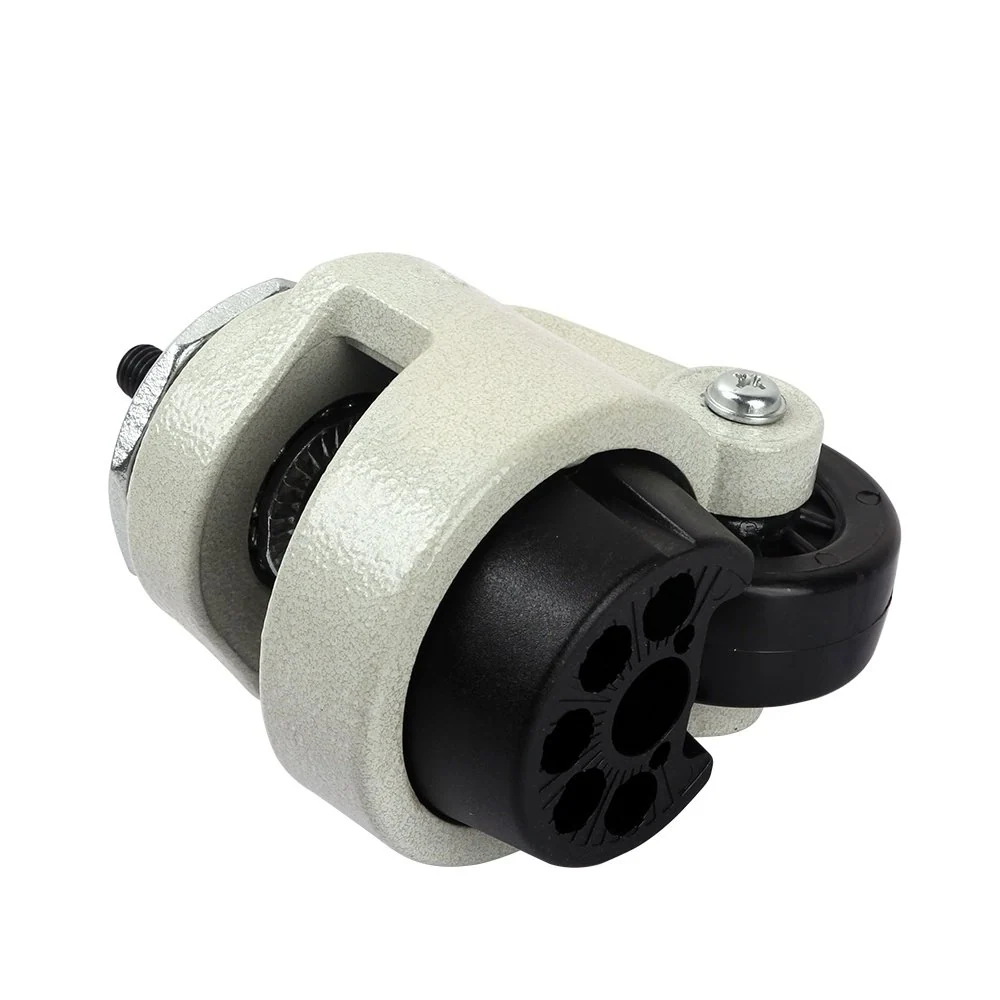

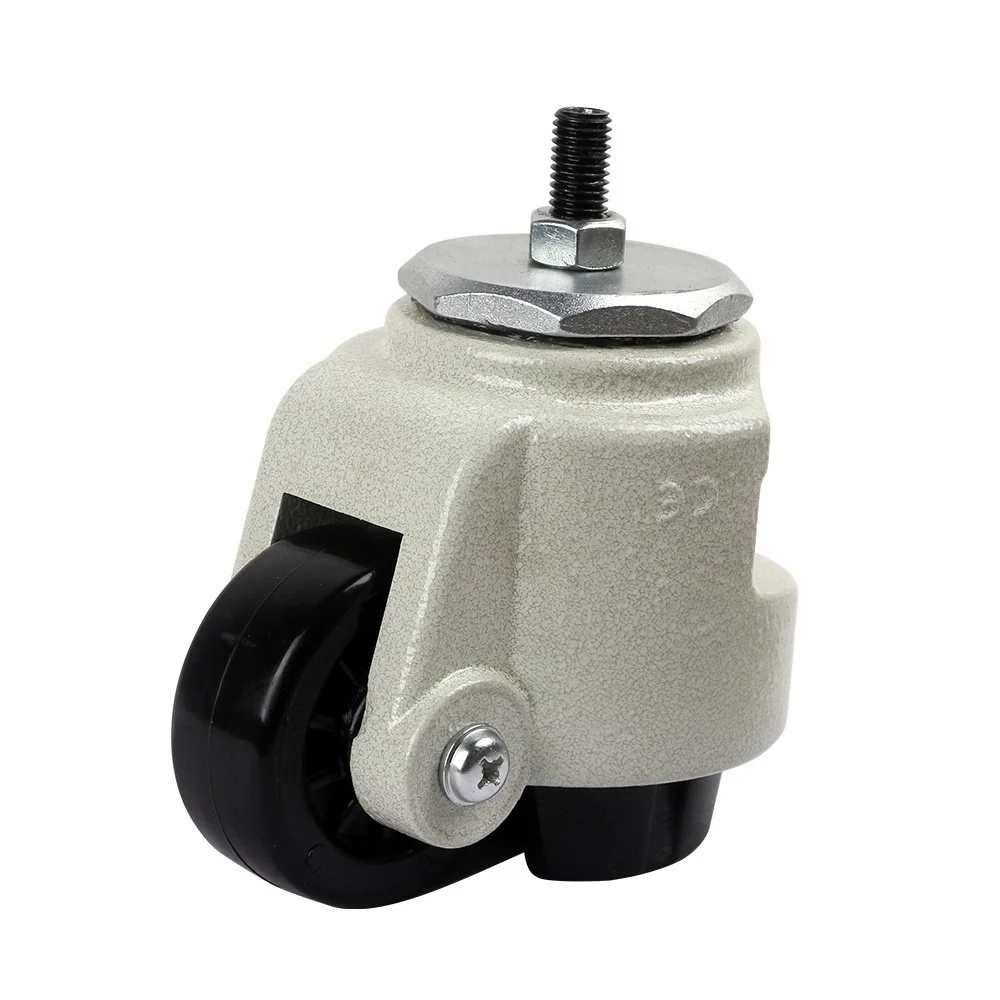

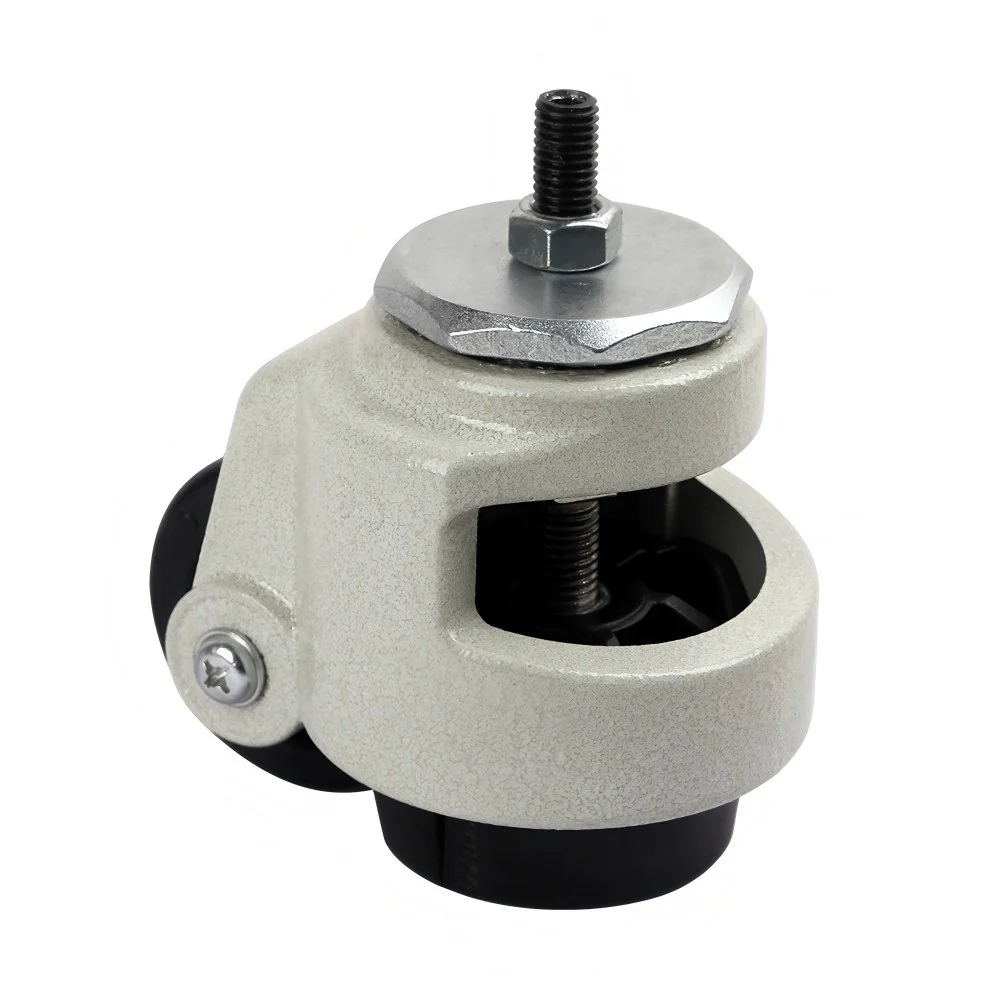

The DC-120S is a ultra heavy-duty leveling caster (Fuma wheel) with a M16 × 45mm threaded stem — it screws straight into a tapped equipment leg, so no drilling or top plate is required. Roll the equipment into position on the 73mm nylon wheel, then turn the integrated leveling pad down to lift the wheel clear of the floor and hold the machine level. Rated 1000 kg (2205 lbs) per caster, 2000 kg (4410 lbs) on a set of four.

Technical Specifications

Model	DC-120S
Type	LEVELING CASTER
Wheel Material	NYLON

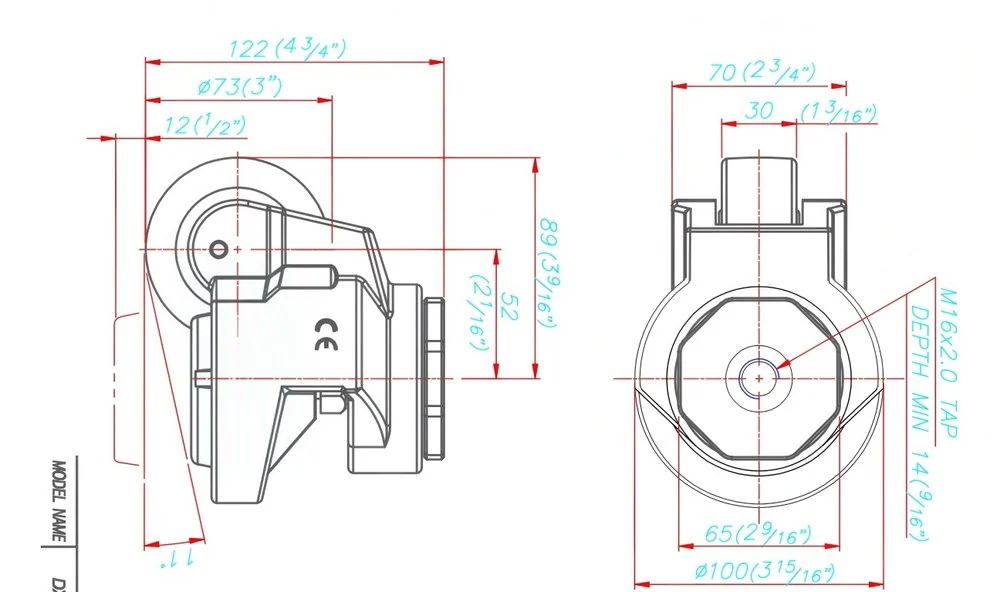

Installation Height	122 + 12 mm (adjustable)
Wheel Diameter	73mm
Wheel Width	30mm
Stem Thread	M16
Stem Length	45mm
Load Capacity (1 pc)	1000 kg (2205 lbs)
Load Capacity (4 pcs)	2000 kg (4410 lbs)
Certification	CE
MOQ	4 pcs (sample order)
Port of Loading	Ningbo
Net Weight	5.76 kg / 4 pcs
Gross Weight	6.0 kg / 4 pcs
Inner Box	29 × 20 × 13 cm / 4 pcs
Master Carton	41.5 × 30 × 28 cm / 16 pcs

Need CAD Drawings?

We supply 2D DXF and 3D STEP files for the DC-120S, plus mounting-hole templates for your design team. Leave your contact details below and tell us which format you need — our engineer will send the drawings within 24 hours, free of charge.

📐 Request CAD Drawing Or Send an Inquiry

Key Features

Move, level and lock in one unit — no separate levelling feet required

M16 × 45mm threaded stem — screws straight into tapped legs, no drilling needed

High-quality nylon wheel: wear-resistant, non-marking and quiet in use

One-piece formed pressed steel housing, zinc plated for rust resistance

CE certified, 100% load-tested before shipment

MOQ 4 pcs — mixed sample orders welcome

Typical Applications

Equipment with tapped leg sockets — machine frames, workbenches, shelving, food-service equipment, medical carts, and light industrial machinery where drilling a top plate is not practical.

Get a Quote WhatsApp: +86 15088229077

Wholesale & OEM Information

DC-120S is manufactured and exported directly by Zhejiang YongKang Dancy Machine Co., Ltd (brand: DancyCastor) in Yongkang, Zhejiang, China. We are a manufacturing factory, not a trading company. Our story begins in 1995 in a family metal-casting workshop; we were incorporated in 2003 and have been making casters ever since. Core castings are produced in our own foundry.

MOQStandard models from a few hundred pieces; OEM and custom runs typically 5,000 pcs per model
Lead timeAbout 10 days for orders up to 2,000 pcs after deposit; longer for larger volumes or fully custom tooling
Payment termsFlexible terms; typically T/T 30% deposit, balance against copy of B/L. L/C and other terms available for larger orders
Port of loadingNingbo or Yiwu, China — we select the port that best suits your destination and delivery schedule
Trade termsFOB Ningbo / Yiwu as standard; CIF, CFR, EXW and other Incoterms available on request
CAD drawingsDimension sheets, 2D CAD drawings and 3D models available on request — leave your contact details and we send them once we have confirmed your mounting with you
SamplesFree samples available for most products so you can test before a bulk order
CustomizationOEM / ODM: custom materials, wheel and finish colours, packaging and private label
Load capacity1000 kg per caster for DC-120S; other models in this range from 50 kg to 1,500 kg (110 lb to 3,305 lb)
Mounting optionsThreaded stem mount — direct to machine frame, no plate required
Factory1,088 m² self-owned plant, 3 production lines, 23 machines, a core team of 7 (about 50 in peak season) and 20,000+ pcs monthly capacity
CertificationCE certified; RoHS / REACH test reports available on request
Export marketsMain export markets: Europe and North America

For a DC-120S quotation, send us your target quantity, mounting type and destination port — we reply within 24 hours with price, lead time and packing details. Need the CAD drawing first? Leave your email or WhatsApp in the same message and we will send the dimension sheet and 3D model once we have confirmed your mounting and load with you.
