Model: DC-80FH | DC-FH Series Leveling Casters (Thick Plate)

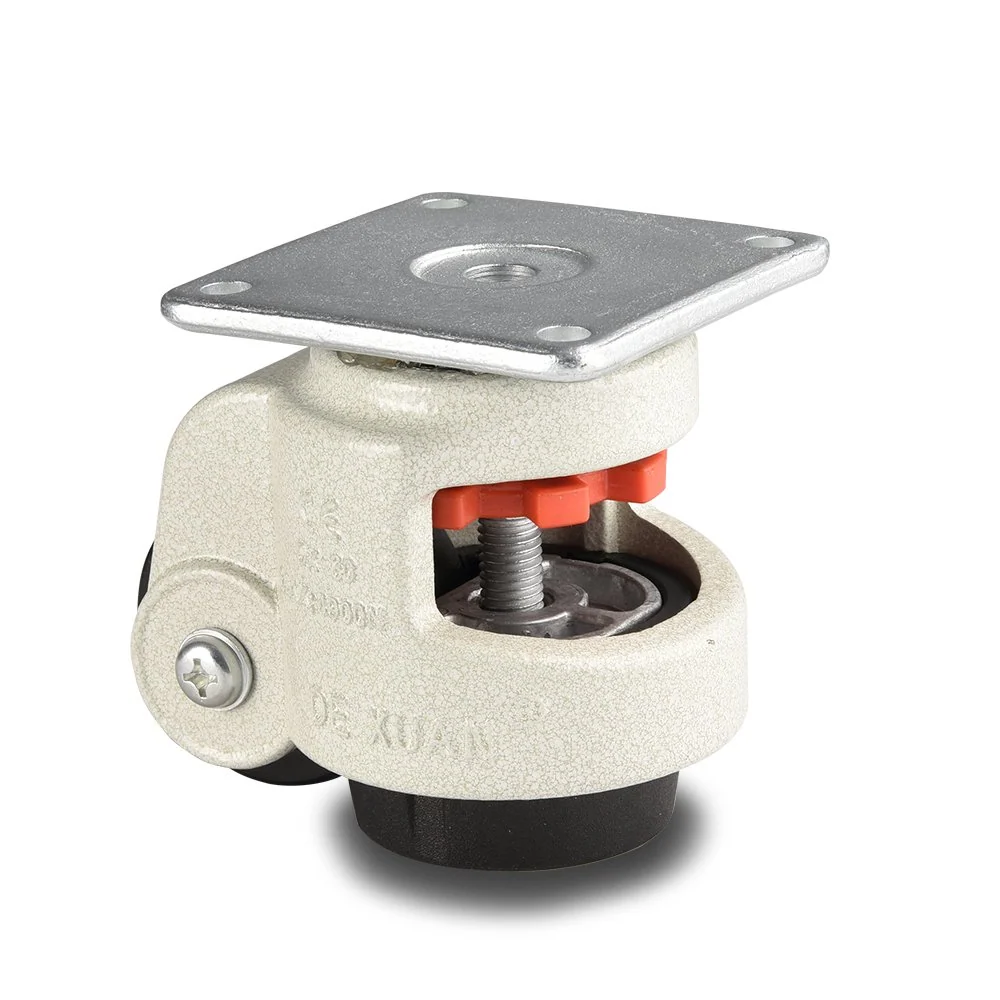

DC-80FH Super Heavy Duty Leveling Caster — Thick Plate

Nylon Wheel 61mm · Load 500 kg (1100 lbs) · Top Plate (4 holes)

61mm
Wheel Ø
500 kg (1100 lbs)
Load / Caster
104+12
Install Height
Top Plate (4 holes)
Mounting

Product Overview

The DC-80FH is a heavy-duty leveling caster — also known as a Fuma wheel — with a 90 × 90mm top plate for bolt-through mounting. It does two jobs in one unit: roll the equipment into position on the 61mm nylon wheel, then turn the built-in leveling pad down to take the load off the wheel and lock the machine perfectly level on uneven floors. Rated 500 kg (1100 lbs) per caster, 1000 kg (2205 lbs) on a set of four. One-piece formed steel housing with a 7mm thick mounting plate. The FH version uses a thickened mounting plate for equipment that sees shock loads or frequent repositioning.

Technical Specifications

ModelDC-80FH
TypeLEVELING CASTER
Wheel MaterialNYLON
Installation Height104 + 12 mm (adjustable)
Wheel Diameter61mm
Wheel Width30mm
Top Plate Size90 × 90 mm
Top Plate Thickness7mm
Screw Hole DiameterØ8.5mm
Hole Spacing70 × 70 mm
Load Capacity (1 pc)500 kg (1100 lbs)
Load Capacity (4 pcs)1000 kg (2205 lbs)
CertificationCE
MOQ4 pcs (sample order)
Port of LoadingNingbo
Net Weight5.3 kg / 4 pcs
Gross Weight5.8 kg / 4 pcs
Inner Box27 × 20 × 11 cm / 4 pcs
Master Carton41 × 28 × 24 cm / 16 pcs

Need CAD Drawings?

We supply 2D DXF and 3D STEP files for the DC-80FH, plus mounting-hole templates for your design team. Leave your contact details below and tell us which format you need — our engineer will send the drawings within 24 hours, free of charge.

📐 Request CAD Drawing Or Send an Inquiry

Key Features

Move, level and lock in one unit — no separate levelling feet required
Pre-drilled top plate (90 × 90mm) with 70 × 70mm hole spacing for fast bolt-through mounting
7mm thick mounting plate — resists bending under full rated load
High-quality nylon wheel: wear-resistant, non-marking and quiet in use
One-piece formed pressed steel housing, zinc plated for rust resistance
CE certified, 100% load-tested before shipment
MOQ 4 pcs — mixed sample orders welcome

Typical Applications

CNC machine tools, semiconductor and electronics manufacturing equipment, printing and packaging machinery, medical and laboratory equipment, ATM and vending cabinets, aluminium profile frames, display racks — any equipment that must be wheeled into place and then levelled on site.
