Model: DC-80S | DC-S Series Leveling Casters (Threaded Stem)

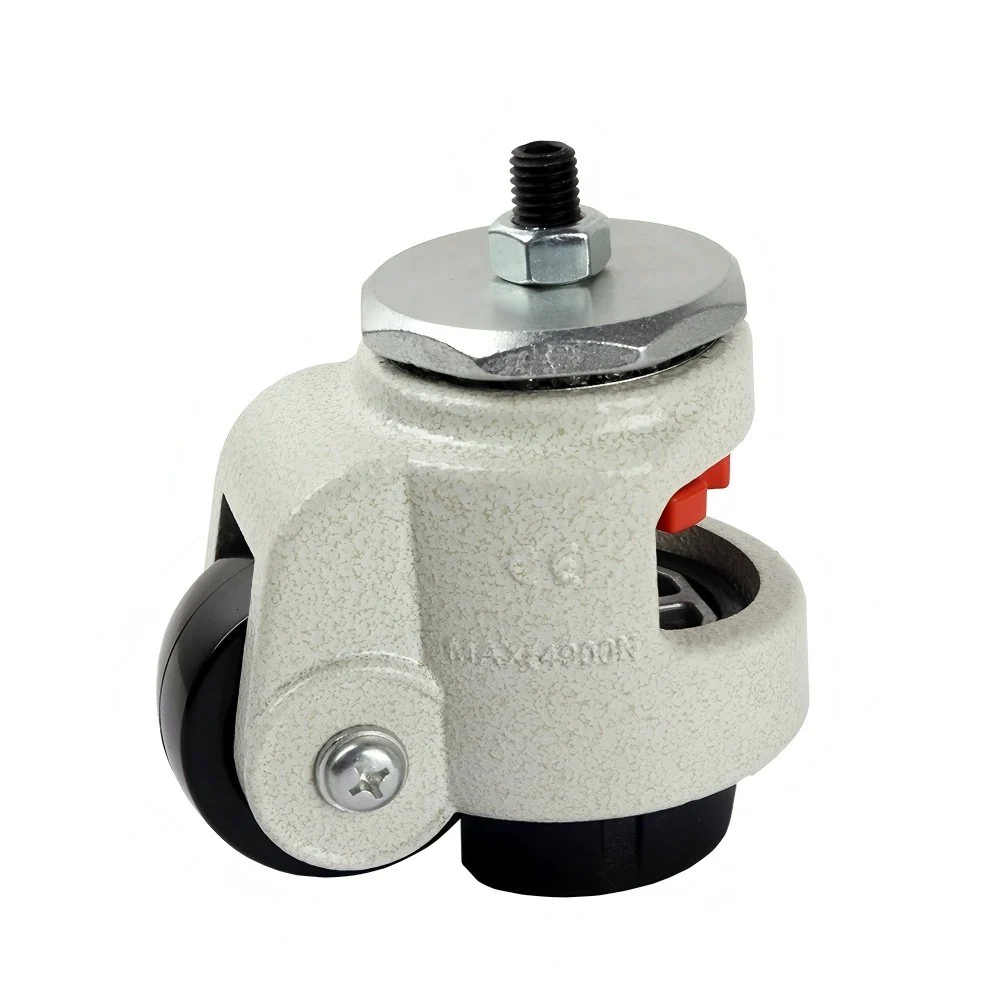

DC-80S Super Heavy Duty Caster — Threaded Stem M12

Nylon Wheel 61mm · Load 500 kg (1100 lbs) · Threaded Stem Mount

61mm
Wheel Ø
500 kg (1100 lbs)
Load / Caster
104+12
Install Height
Threaded Stem Mount
Mounting

Product Overview

The DC-80S is a heavy-duty leveling caster (Fuma wheel) with a M12 × 40mm threaded stem — it screws straight into a tapped equipment leg, so no drilling or top plate is required. Roll the equipment into position on the 61mm nylon wheel, then turn the integrated leveling pad down to lift the wheel clear of the floor and hold the machine level. Rated 500 kg (1100 lbs) per caster, 1000 kg (2205 lbs) on a set of four.

Technical Specifications

ModelDC-80S
TypeLEVELING CASTER
Wheel MaterialNYLON
Installation Height104 + 12 mm (adjustable)
Wheel Diameter61mm
Wheel Width30mm
Stem ThreadM12
Stem Length40mm
Load Capacity (1 pc)500 kg (1100 lbs)
Load Capacity (4 pcs)1000 kg (2205 lbs)
CertificationCE
MOQ4 pcs (sample order)
Port of LoadingNingbo
Net Weight4.8 kg / 4 pcs
Gross Weight5.2 kg / 4 pcs
Inner Box27 × 20 × 11 cm / 4 pcs
Master Carton41 × 28 × 24 cm / 16 pcs

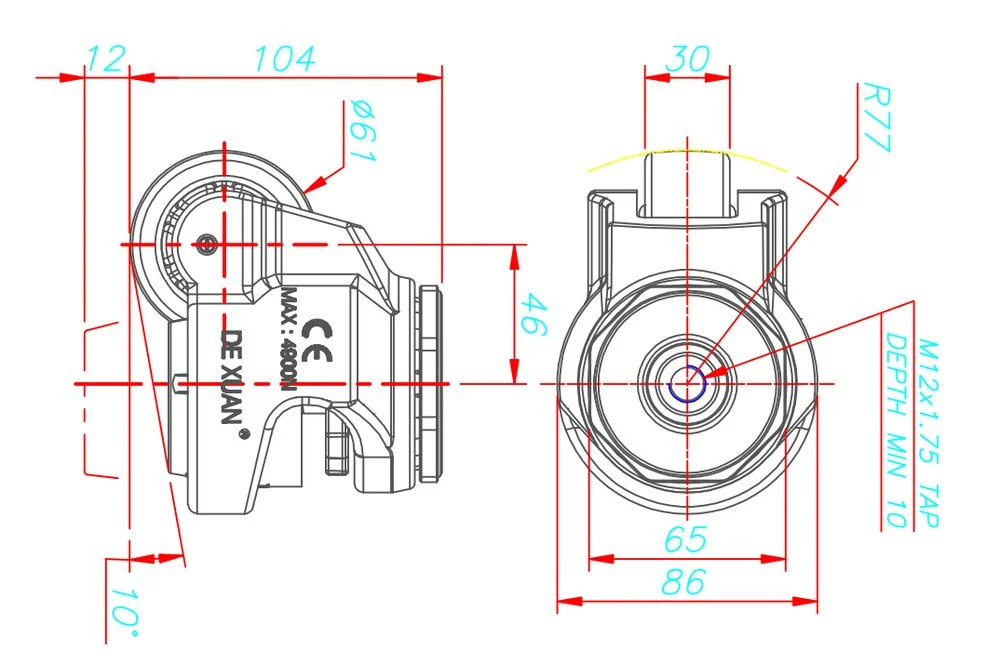

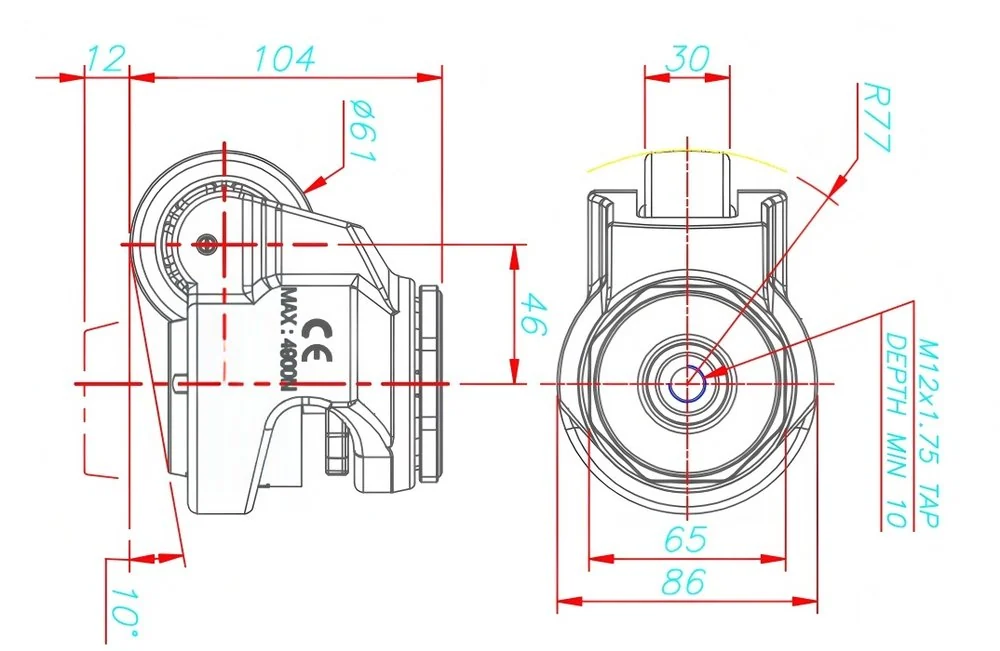

Need CAD Drawings?

We supply 2D DXF and 3D STEP files for the DC-80S, plus mounting-hole templates for your design team. Leave your contact details below and tell us which format you need — our engineer will send the drawings within 24 hours, free of charge.

📐 Request CAD Drawing Or Send an Inquiry

Key Features

Move, level and lock in one unit — no separate levelling feet required
M12 × 40mm threaded stem — screws straight into tapped legs, no drilling needed
High-quality nylon wheel: wear-resistant, non-marking and quiet in use
One-piece formed pressed steel housing, zinc plated for rust resistance
CE certified, 100% load-tested before shipment
MOQ 4 pcs — mixed sample orders welcome

Typical Applications

Equipment with tapped leg sockets — machine frames, workbenches, shelving, food-service equipment, medical carts, and light industrial machinery where drilling a top plate is not practical.

Get a Quote WhatsApp: +86 15088229077

Related Products

Browse more models in the Leveling Casters series

DC-40F Leveling Caster Hot Seller

DC-40F Leveling Caster

Nylon Wheel 43mm · 73+8mm Height · 50kg Load

Free Sample Available
DC-40S Leveling Caster (Stem) Free Sample

DC-40S Leveling Caster (Stem)

Nylon 43mm · M8 Stem · 50kg Load

Free Sample Available
DC-60F Heavy Duty Popular

DC-60F Heavy Duty

Nylon 50mm · 82+10mm Height · 250kg Load

Free Sample Available
DC-60S Heavy Duty (Stem) Free Sample

DC-60S Heavy Duty (Stem)

Nylon 50mm · M12 Stem · 250kg Load

Free Sample Available

Wholesale & OEM Information

DC-80S is manufactured and exported directly by Zhejiang YongKang Dancy Machine Co., Ltd (brand: DancyCastor) in Yongkang, Zhejiang, China. We are a manufacturing factory, not a trading company. Our story begins in 1995 in a family metal-casting workshop; we were incorporated in 2003 and have been making casters ever since. Core castings are produced in our own foundry.

  • MOQStandard models from a few hundred pieces; OEM and custom runs typically 5,000 pcs per model
  • Lead timeAbout 10 days for orders up to 2,000 pcs after deposit; longer for larger volumes or fully custom tooling
  • Payment termsFlexible terms; typically T/T 30% deposit, balance against copy of B/L. L/C and other terms available for larger orders
  • Port of loadingNingbo or Yiwu, China — we select the port that best suits your destination and delivery schedule
  • Trade termsFOB Ningbo / Yiwu as standard; CIF, CFR, EXW and other Incoterms available on request
  • CAD drawingsDimension sheets, 2D CAD drawings and 3D models available on request — leave your contact details and we send them once we have confirmed your mounting with you
  • SamplesFree samples available for most products so you can test before a bulk order
  • CustomizationOEM / ODM: custom materials, wheel and finish colours, packaging and private label
  • Load capacity500 kg per caster for DC-80S; other models in this range from 50 kg to 1,500 kg (110 lb to 3,305 lb)
  • Mounting optionsThreaded stem mount — direct to machine frame, no plate required
  • Factory1,088 m² self-owned plant, 3 production lines, 23 machines, a core team of 7 (about 50 in peak season) and 20,000+ pcs monthly capacity
  • CertificationCE certified; RoHS / REACH test reports available on request
  • Export marketsMain export markets: Europe and North America

For a DC-80S quotation, send us your target quantity, mounting type and destination port — we reply within 24 hours with price, lead time and packing details. Need the CAD drawing first? Leave your email or WhatsApp in the same message and we will send the dimension sheet and 3D model once we have confirmed your mounting and load with you.

Quantities, customisation and commercial terms are set out on the wholesale & OEM terms page.
