Model: DCA-60F
|
Leveling Casters

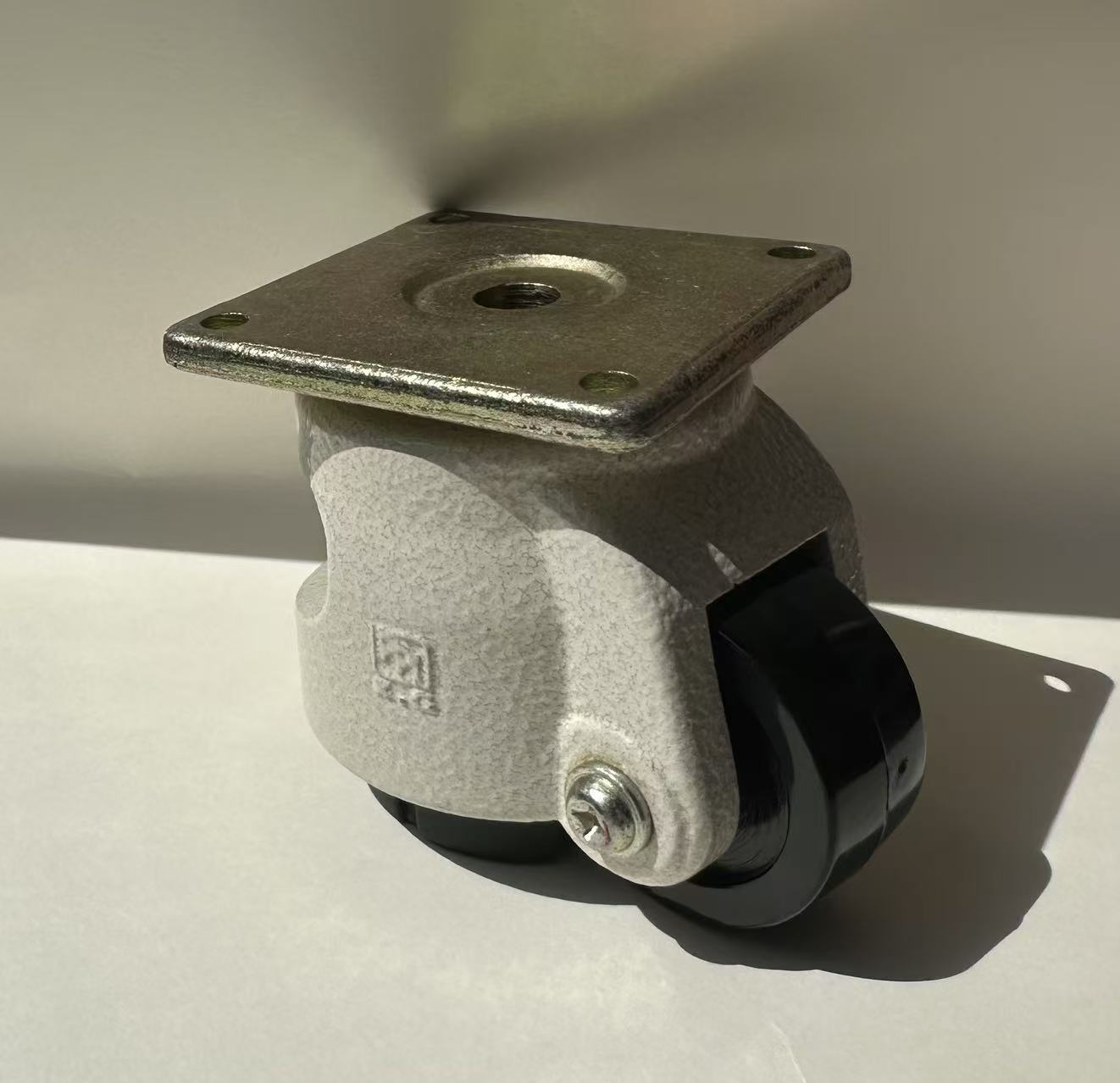

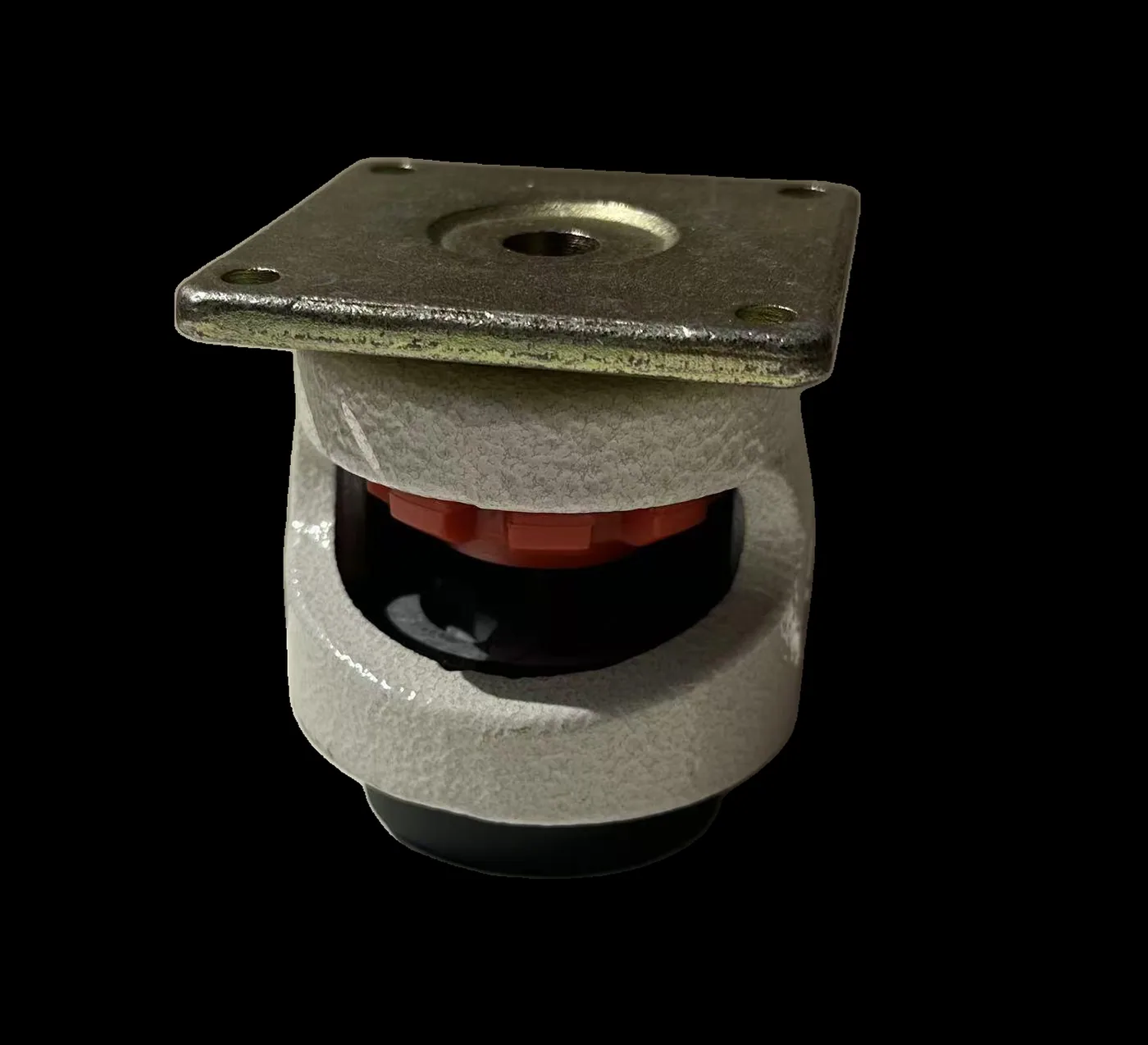

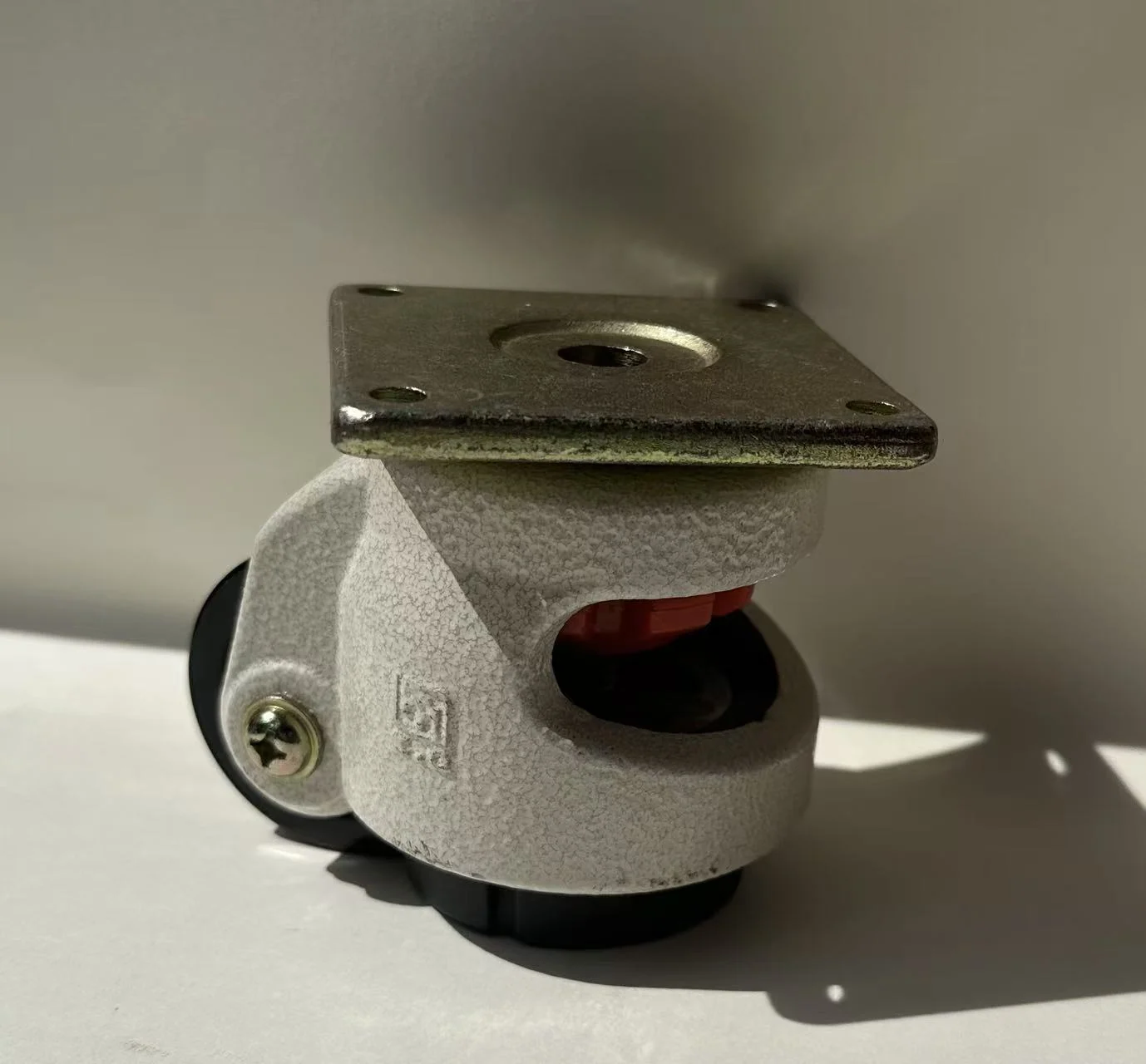

DCA-60F Heavy Duty Leveling Caster with Top Plate (Rounded Housing)
Nylon 50mm · 82+10mm Height · 250kg Load
50mm
Wheel Ø
250 kg (550 lbs)
Single Load
82
Height
Top Plate (4 holes)
Mounting
Product Overview
The DCA-60F combines our proven 250kg single-unit capacity with a new rounded, die-cast housing. The distinctive cylindrical body design offers improved aesthetic appeal while maintaining the heavy-duty performance of the DX-60F. The integrated leveling pad and 360° rotation make it ideal for industrial equipment that requires both strength and visual quality.

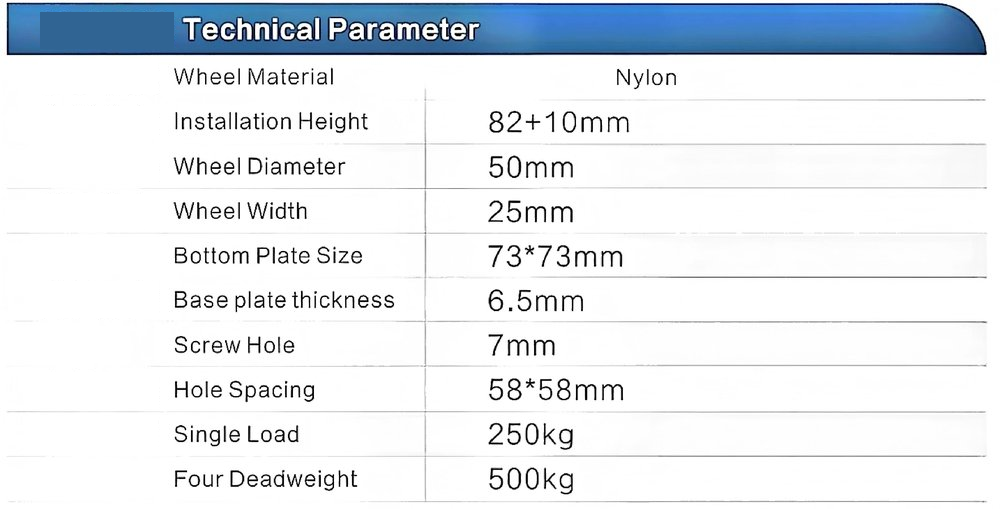

Technical Specifications
| Model | DCA-60F |
| Series | DCA (Rounded Housing) |
| Wheel Material | Nylon |
| Mounting Height | 82 + 10mm (adjustable) |
| Wheel Diameter | 50mm |
| Wheel Width | 25mm |
| Top Plate Size | 73 × 73mm |
| Screw Hole Diameter | 7mm |
| Hole Spacing | 58 × 58mm |
| Mounting Type | Top Plate (4 holes) |
| Single Load Capacity | 250 kg (550 lbs) |
| Four-Unit Load Capacity | 500 kg (1,100 lbs) |
Key Features
Rounded die-cast housing — premium aesthetic
Same 250kg heavy-duty capacity as DX-60F
Integrated 360° rotation, leveling, and shock absorption
10mm leveling adjustment range
Cylindrical body for improved rigidity and visual quality
Anti-corrosion zinc-plated steel top plate
Typical Applications
Communication equipment, semiconductor manufacturing, testing equipment, display manufacturing, ATM equipment, vending machines, automation equipment, premium industrial machinery.
