Model: DCRA-65
|
Japanese Heavy Low Gravity Casters

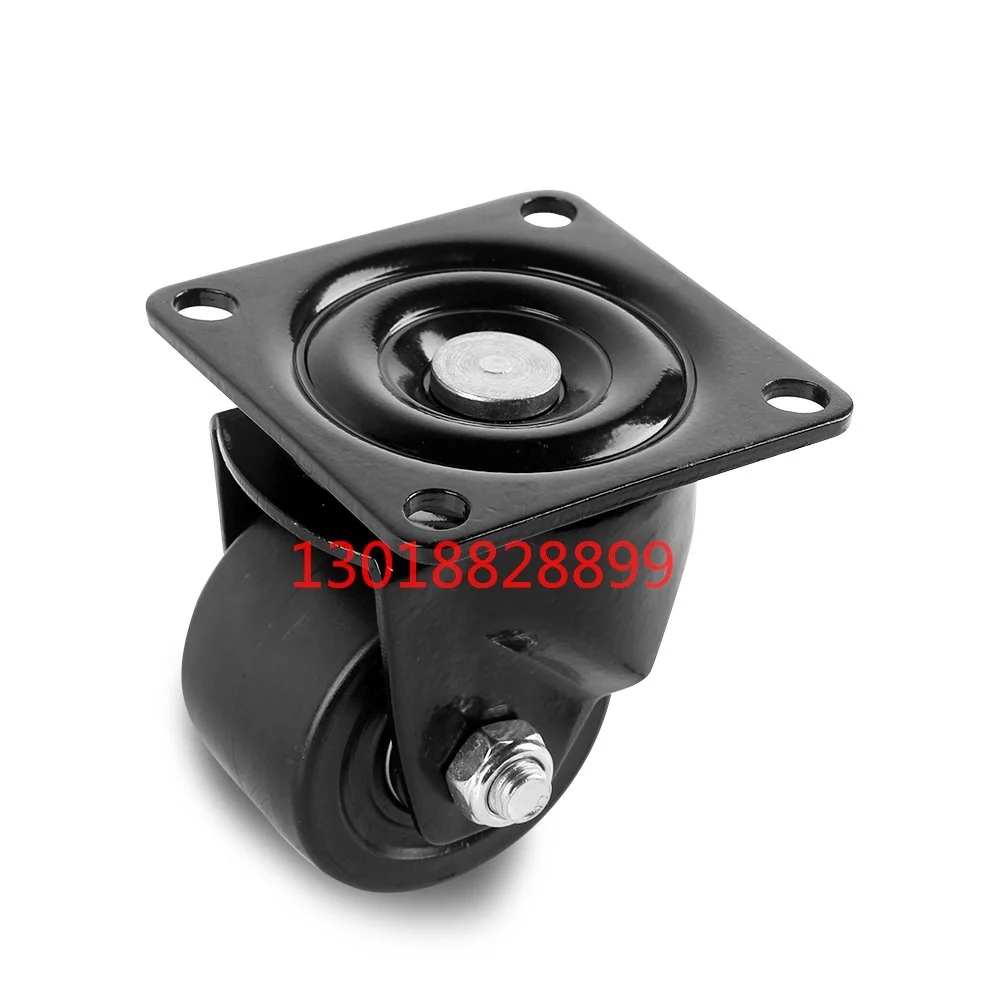

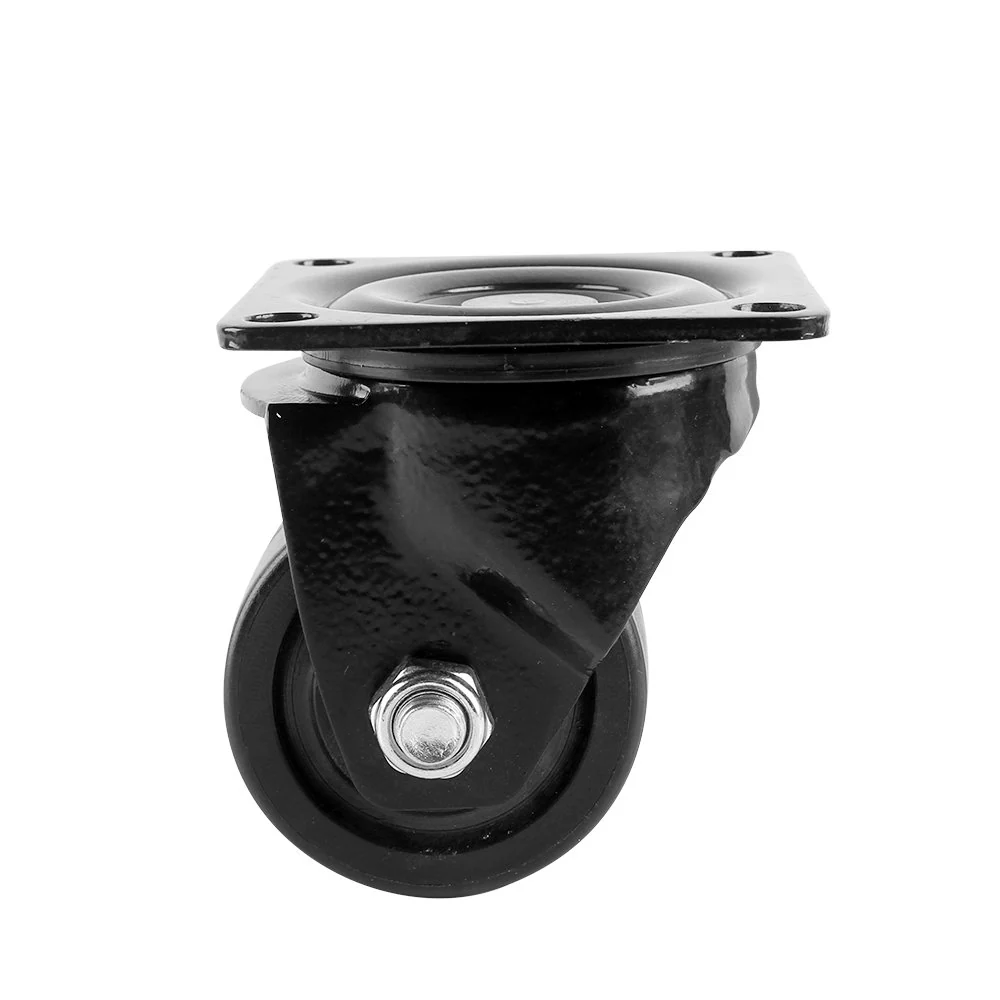

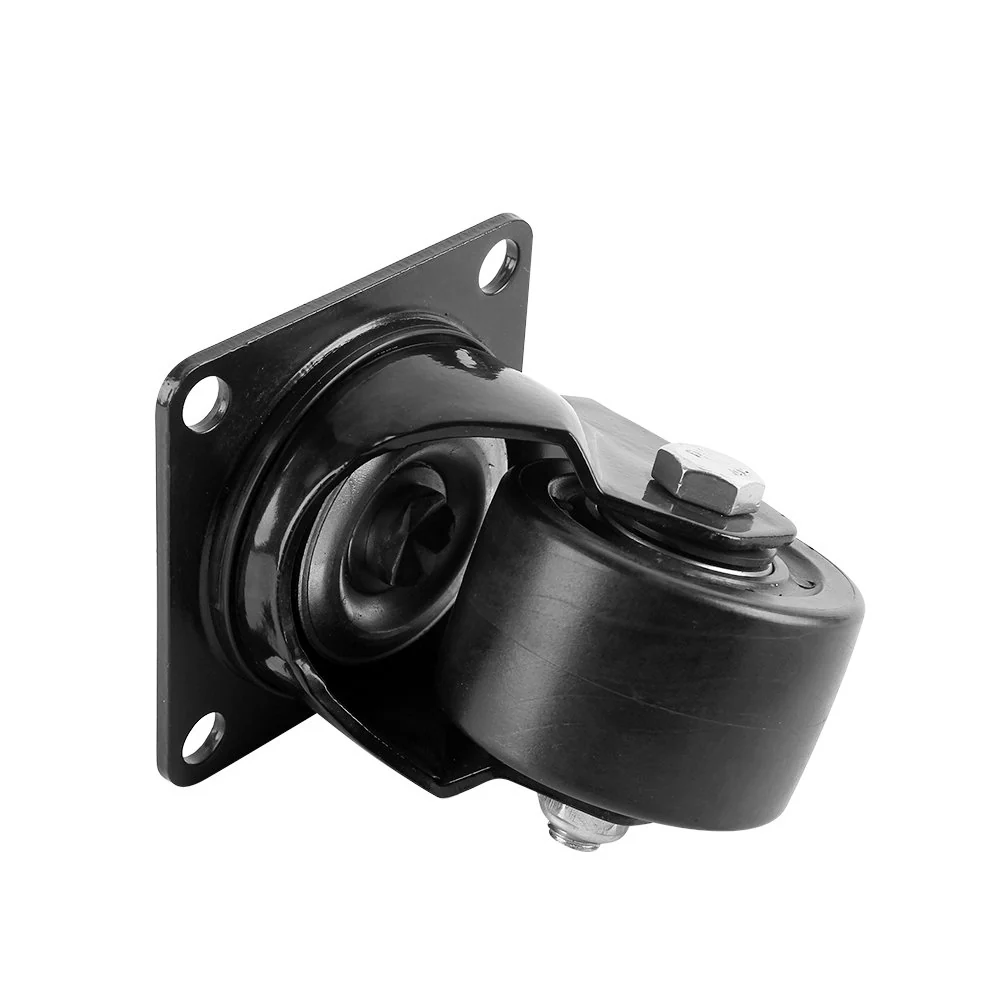

DCRA-65 2.5" Japanese Swivel Caster with Brake & Top Plate
Nylon 65mm · Top Plate · 500kg Load · With Brake
65mm (2.5")
Wheel Ø
500 kg (1,100 lbs)
Single Load
undefined+mm
Height
Top Plate (4 holes)
Mounting
Product Overview
DCRA-65 is a Japanese-style heavy low gravity swivel caster with integrated brake, sized for higher loads. Features 360° rotation with secure locking. 65mm wheel with 500kg single-unit load capacity. The industry standard for Japanese-style equipment in the 2.5" size class.
Technical Specifications
| Model | DCRA-65 |
| Wheel Material | Nylon |
| Wheel Diameter | 65mm (2.5") |
| Wheel Width | 48mm |
| Installation Height | 98mm |
| Top Plate Size | 100 × 100mm |
| Hole Spacing | 78 × 78mm |
| Mounting Type | Top Plate (4 holes) |
| Swivel | 360° rotation |
| Brake | Integrated side brake |
| Single Load Capacity | 500 kg (1,100 lbs) |
| Four-Unit Load Capacity | 2,000 kg (4,400 lbs) |
Key Features
Japanese low gravity heavy-duty design
Integrated side brake for secure positioning
500kg high load capacity
360° smooth swivel rotation
Standard 2.5" size for Japanese-style equipment
Typical Applications
Industrial machinery, mobile carts, medical equipment, lab instruments, equipment requiring brake locking.
