Model: DCRA-75
|
Japanese Heavy Low Gravity Casters

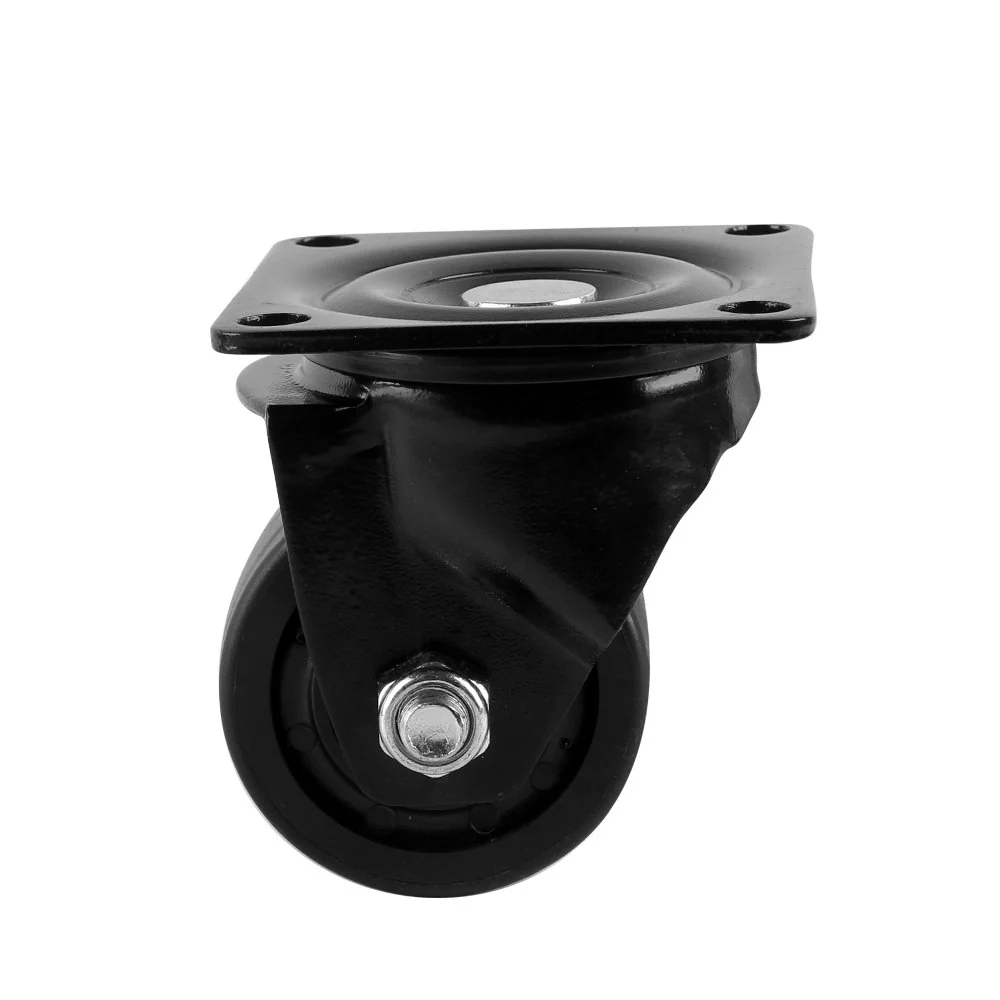

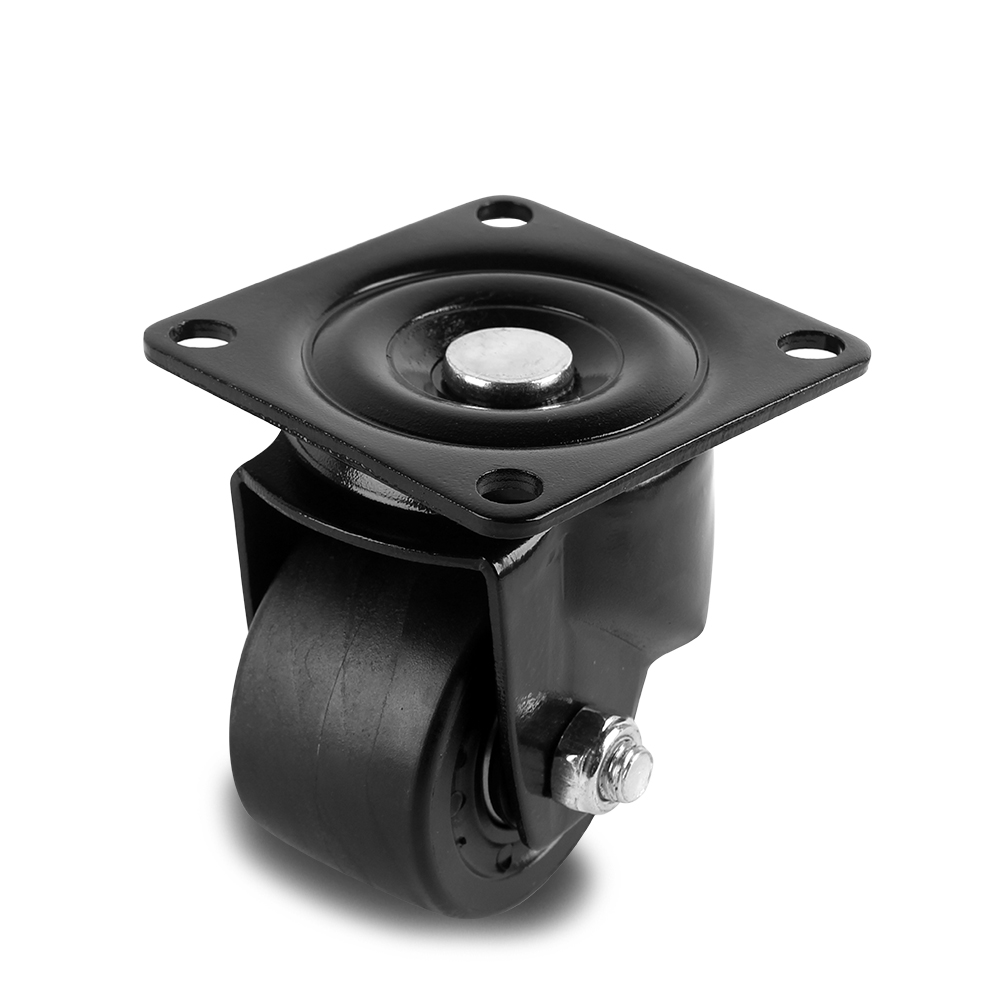

DCRA-75 3" Japanese Swivel Caster with Brake & Top Plate
Nylon 75mm · Top Plate · 600kg Load · With Brake
75mm (3")
Wheel Ø
600 kg (1,320 lbs)
Single Load
undefined+mm
Height
Top Plate (4 holes)
Mounting
Product Overview
DCRA-75 is our largest Japanese-style swivel caster with integrated brake. Features 75mm wheel for maximum load distribution and 600kg single-unit capacity. Ideal for heavy industrial Japanese-style equipment requiring secure positioning.
Technical Specifications
| Model | DCRA-75 |
| Wheel Material | Nylon |
| Wheel Diameter | 75mm (3") |
| Wheel Width | 48mm |
| Installation Height | 108mm |
| Top Plate Size | 100 × 100mm |
| Hole Spacing | 78 × 78mm |
| Mounting Type | Top Plate (4 holes) |
| Swivel | 360° rotation |
| Brake | Integrated side brake |
| Single Load Capacity | 600 kg (1,320 lbs) |
| Four-Unit Load Capacity | 2,400 kg (5,280 lbs) |
Key Features
Largest Japanese-style swivel caster — 3" wheel
Integrated side brake for secure positioning
600kg extreme load capacity
360° smooth swivel rotation
Reinforced top plate for heavy-duty use
Typical Applications
Heavy industrial Japanese equipment, large mobile platforms, high-load machinery requiring brake locking.
