Adj. Block
🎁
Free Sample — Evaluate before you order. Contact us with your shipping details.
Model: DCRB-300
|
Casters with Adjustment Block

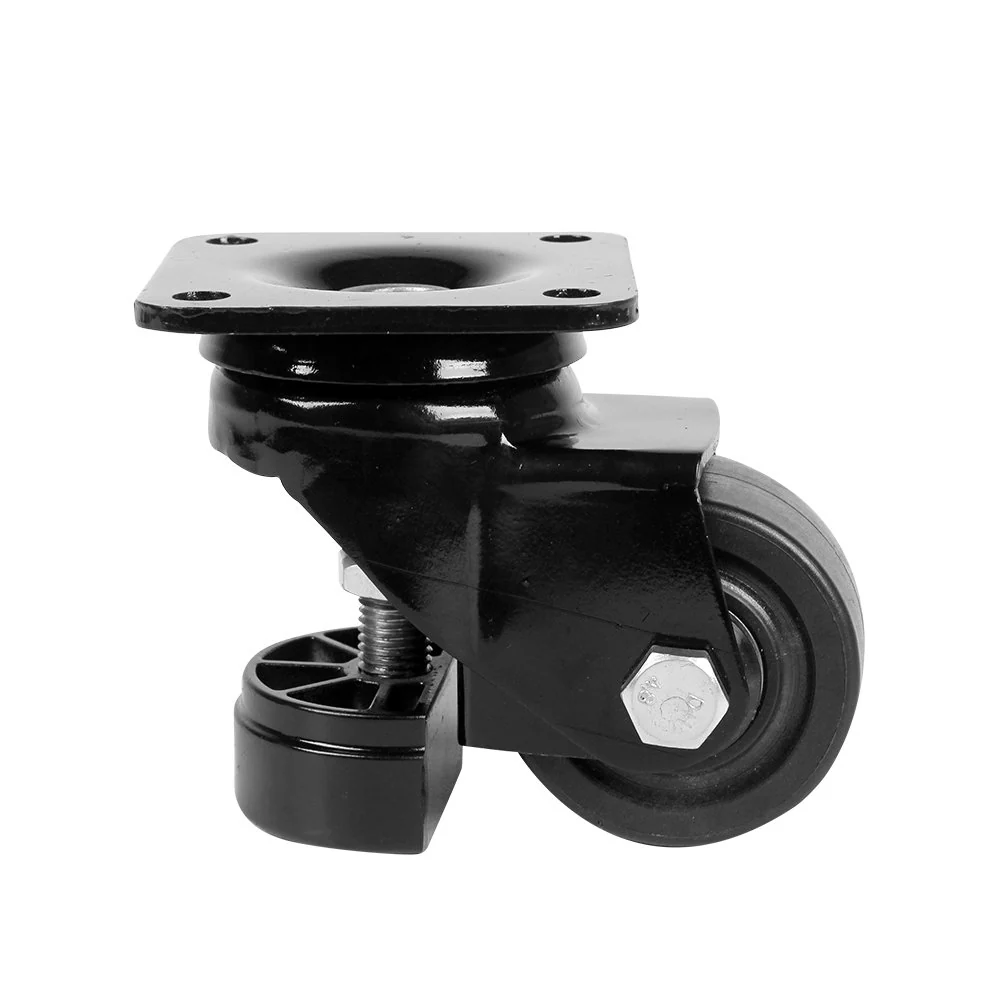

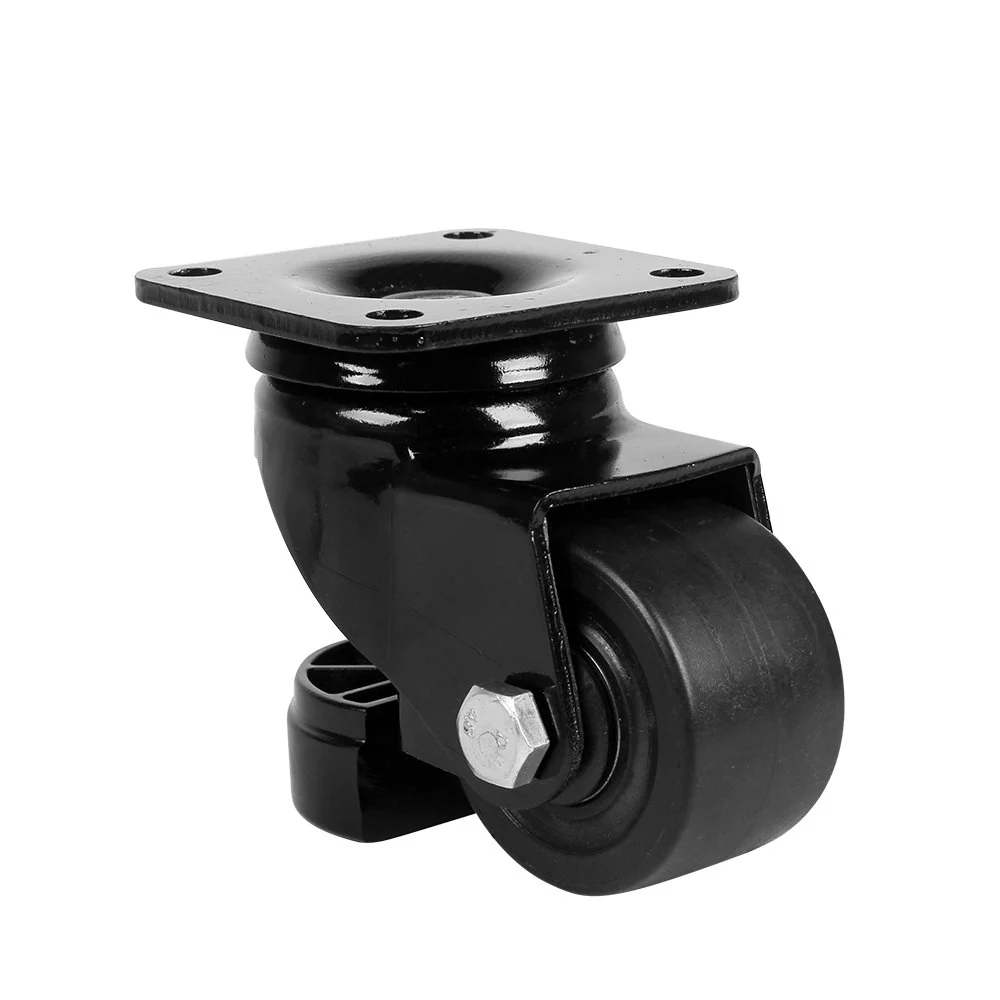

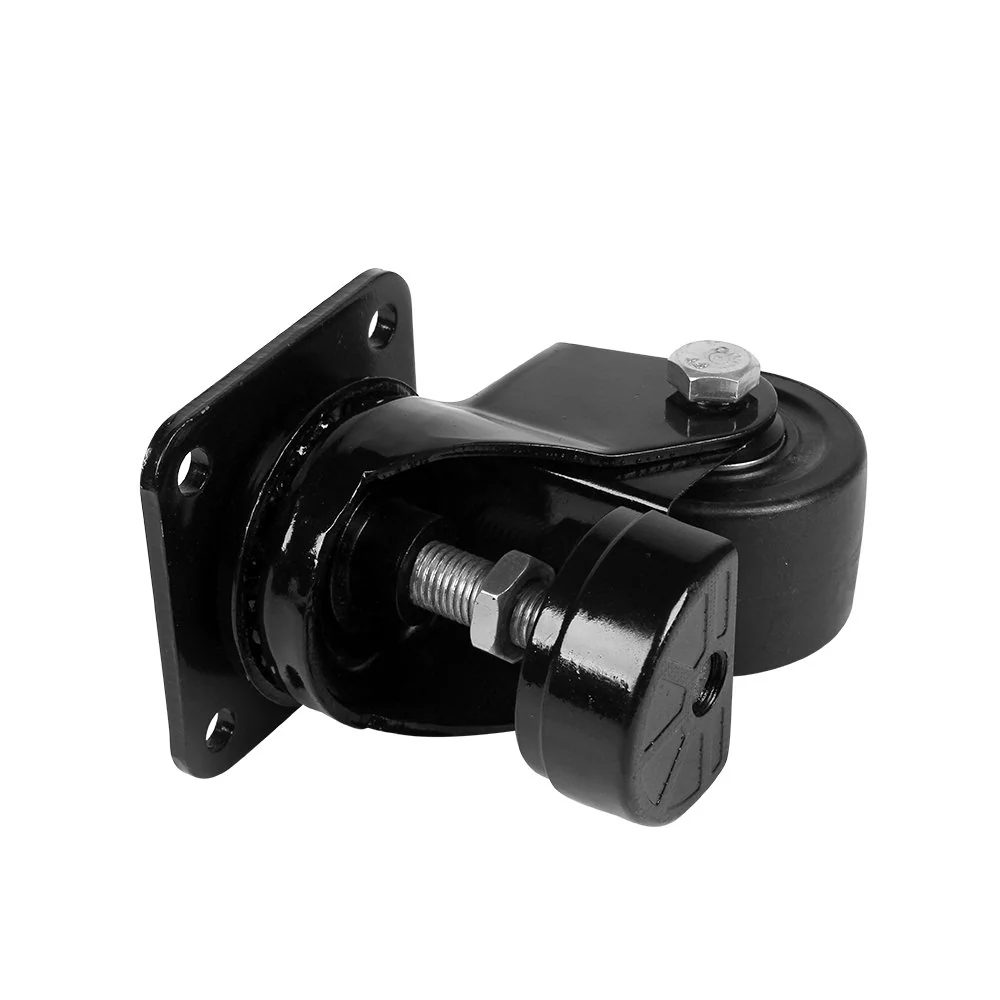

DCRB-300 2" Japanese Adjustable Low Gravity Caster with Block
Nylon 50mm · 82+10mm Height · 300kg Load
50mm (2")
Wheel Ø
300 kg (660 lbs)
Single Load
82+mm
Height
Top Plate (4 holes) with Adj. Block
Mounting
Product Overview
The DCRB-300 is a 2" Japanese-style adjustable low gravity caster with integrated adjustment block housing. Features 360° rotation, leveling (10mm adjustment), and shock absorption in a compact design. 300kg single-unit capacity with 50mm nylon wheel — ideal for medium-duty industrial equipment.
Technical Specifications
| Model | DCRB-300 |
| Style | Japanese Low Gravity with Adj. Block |
| Wheel Material | Nylon |
| Wheel Diameter | 50mm (2") |
| Wheel Width | 38mm |
| Installation Height | 82 + 10mm (adjustable) |
| Top Plate Size | 81 × 81mm |
| Hole Spacing | 58 × 58mm |
| Mounting Aperture | 8mm |
| Mounting Type | Top Plate (4 holes) with Adj. Block |
| Swivel | 360° rotation |
| Single Load Capacity | 300 kg (660 lbs) |
Key Features
Japanese-style low gravity with integrated adj. block
300kg single-unit capacity
10mm height adjustment via adj. block
50mm nylon wheel
360° swivel rotation
Shockproof and rust-resistant housing
Compact 81×81mm top plate
Typical Applications
Japanese-style industrial equipment, automation, medium-duty machinery, equipment requiring integrated adjustment in compact spaces.
