Model: D100
|
Leveling Foot Cups
D100 Leveling Foot Cup — 100mm Diameter
100mm Dia · M16/M20 Thread · 100/150/200mm Length
—
Wheel Ø
undefined kg
Single Load
undefined+mm
Height
Plate
Mounting
Product Overview
D100 aluminum leveling foot cup — 100mm large diameter base with M16 or M20 threaded stud. Available in 100mm, 150mm, and 200mm stud lengths. The largest foot cup in our lineup, providing maximum load distribution and stability for heavy equipment. Premium chrome-plated aluminum body with anti-slip red rubber base.

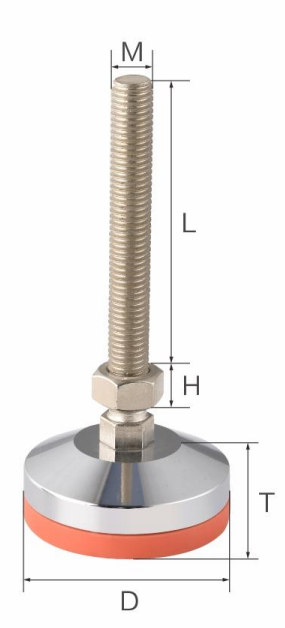

Technical Specifications
| Model | D100 |
| Diameter (D) | 100mm |
| Thread Size (M) | M16 / M20 |
| Stud Length (L) | 100mm / 150mm / 200mm |
| Hex Nut Height (H) | 12mm (M16) / 9.5mm (M20) |
| Total Cup Height (T) | 36mm |
| Body Material | Chrome-Plated Aluminum |
| Base Material | Non-Slip Rubber (Red) |
| Load Capacity | 800 kg (per foot) |
Key Features
100mm largest diameter — maximum stability
M16 or M20 threaded stud options
Three stud length options: 100/150/200mm
Heavy-duty chrome-plated aluminum body
Red non-slip rubber base for vibration resistance
800kg load capacity per foot — heavy duty
Typical Applications
Heavy industrial machinery, large equipment bases, CNC machines, large automation systems, structural support applications, premium installations.
