Model: DCP-100
|
Adjustable Support Casters

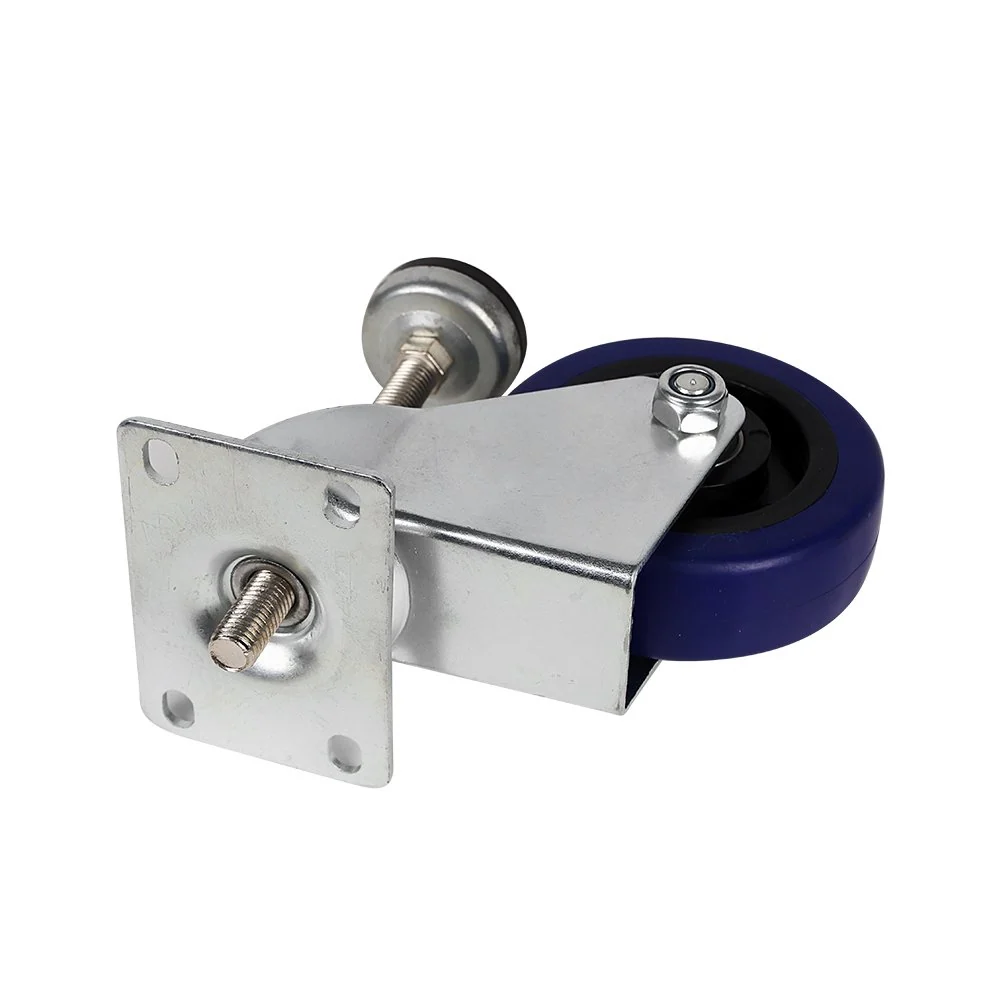

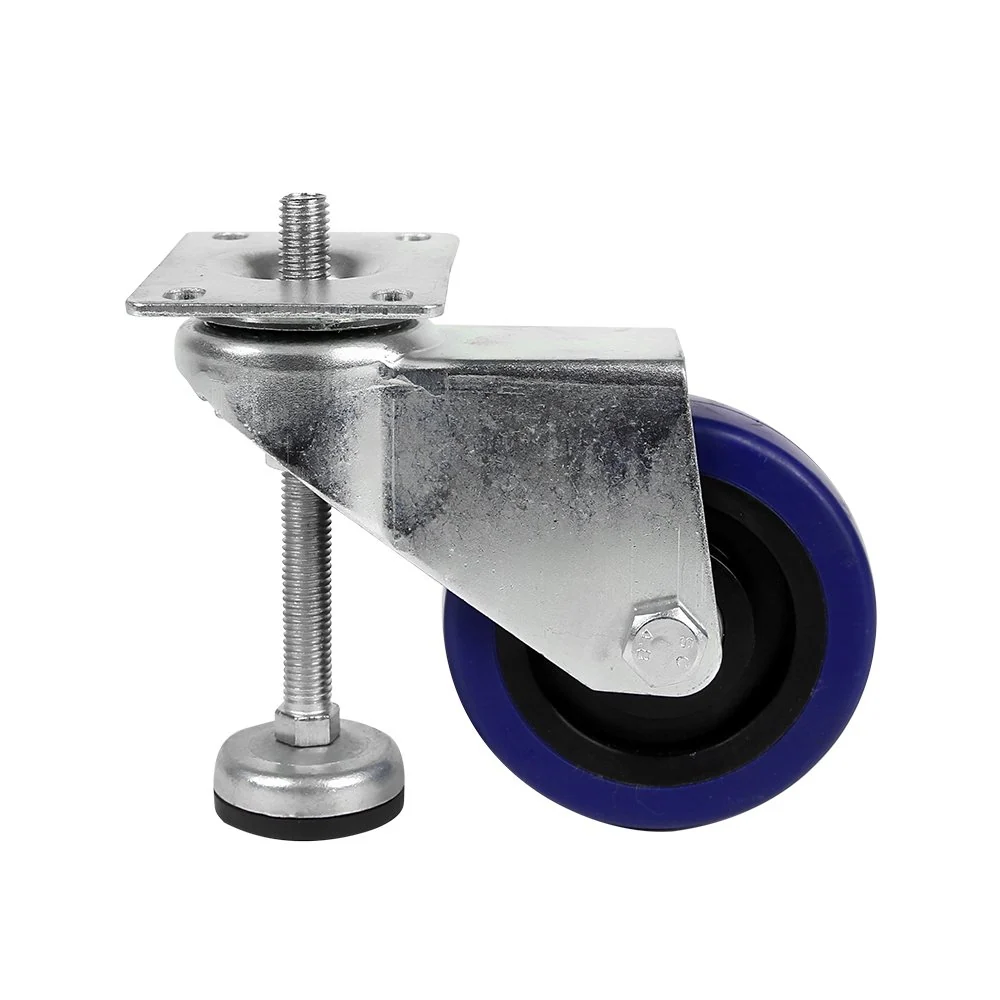

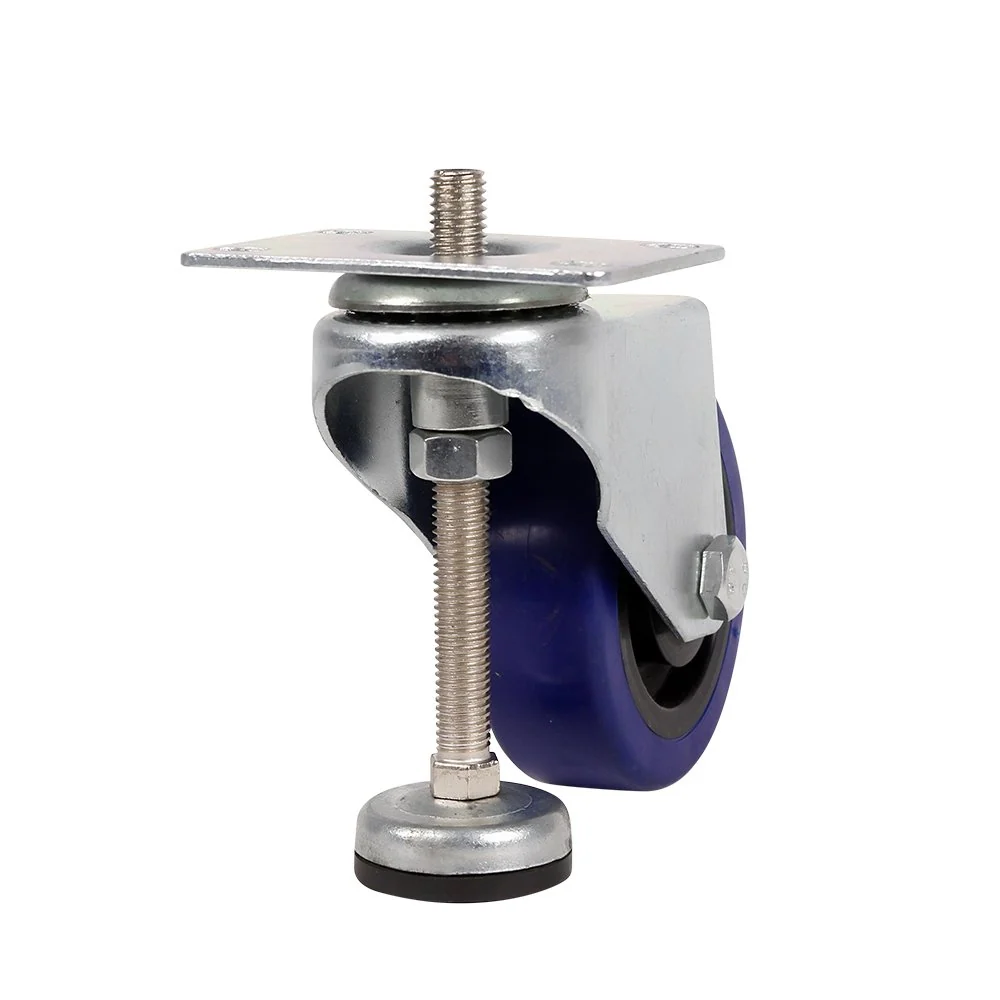

DCP-100 Adjustable Support Caster with Foot Cup
TPE 100mm · 130mm Height · 120kg Load · M12 Screw Rod
100mm
Wheel Ø
120 kg (265 lbs)
Single Load
undefined+mm
Height
Top Plate with M12 Screw Rod
Mounting
Product Overview
The DCP-100 is the largest adjustable support caster with 100mm blue TPE wheel and 120kg load capacity. Tall 130mm installation height with M12 screw rod. The oversized wheel provides excellent load distribution and the smoothest rolling performance in the DCP series.
Technical Specifications
| Model | DCP-100 |
| Wheel Material | TPE (Thermoplastic Elastomer) |
| Wheel Diameter | 100mm |
| Wheel Width | 32mm |
| Installation Height | 130mm |
| Top Plate Size | 94 × 67mm |
| Hole Spacing | 73 × 44mm |
| Screw Hole Size | 12 × 8mm |
| Foot Cup Diameter | 45mm |
| Screw Rod | M12 |
| Mounting Type | Top Plate with M12 Screw Rod |
| Single Load Capacity | 120 kg (265 lbs) |
Key Features
Largest 100mm blue TPE wheel — smoothest rolling
M12 screw rod for height adjustment
120kg single-unit load capacity
45mm anti-slip foot cup
94×67mm rectangular top plate
Chrome-plated zinc housing for corrosion resistance
Maximum floor protection with TPE tread
Typical Applications
Heavy laboratory benches, large medical equipment, clean room automation, hospital beds, premium furniture, equipment requiring maximum floor protection.
