TPE Wheel
🎁
Free Sample — Evaluate before you order. Contact us with your shipping details.
Model: DCP-75
|
Adjustable Support Casters

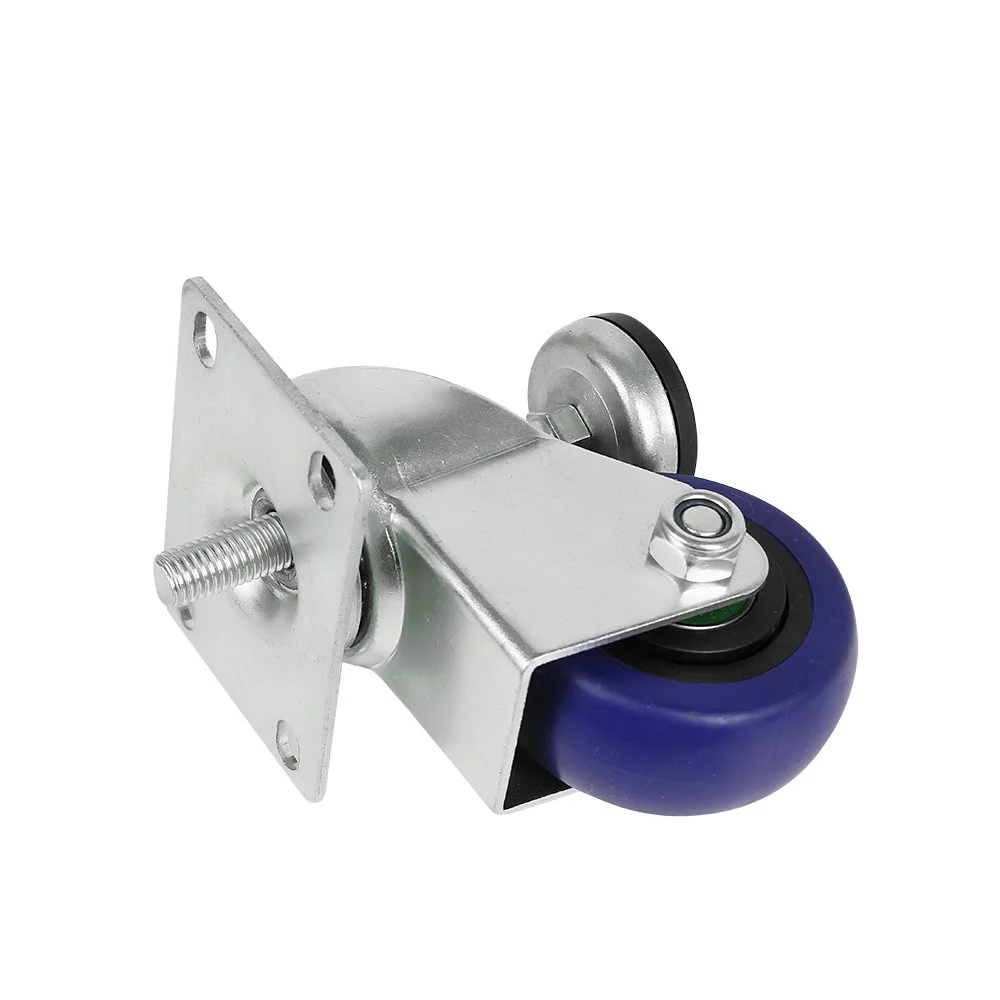

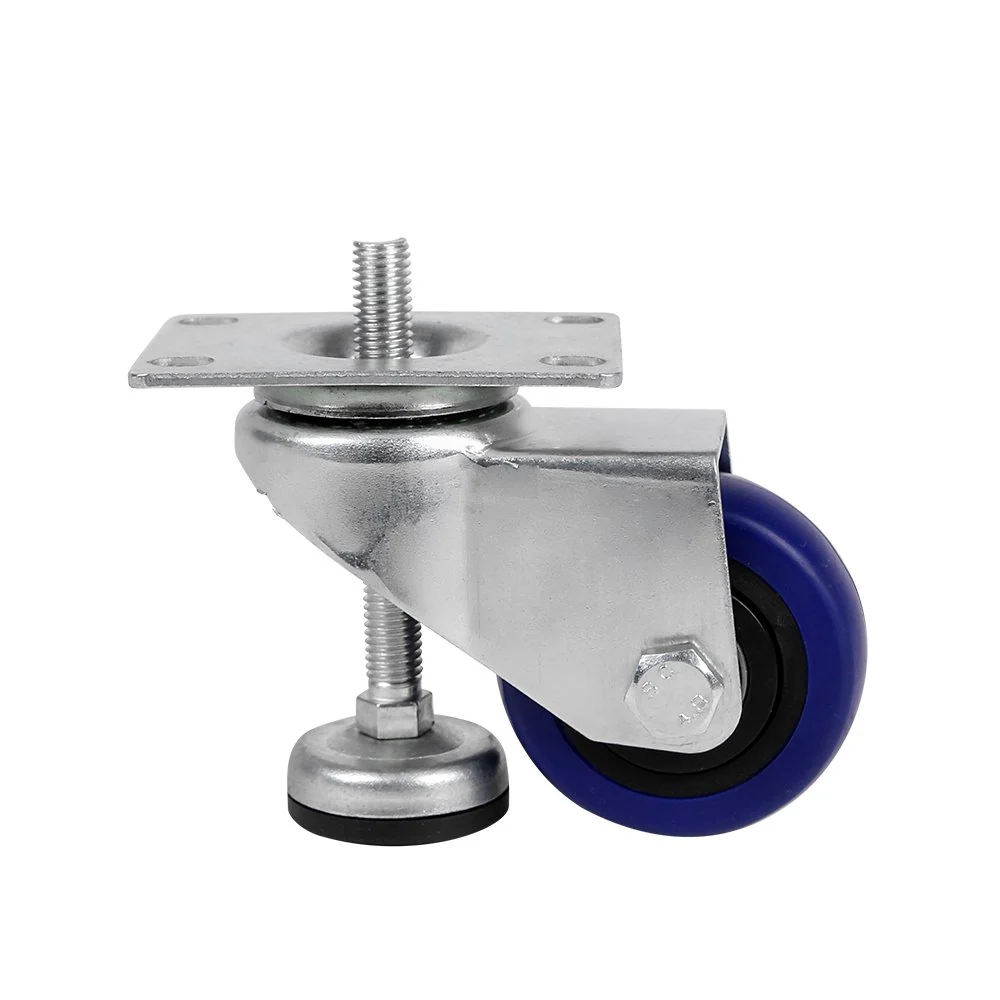

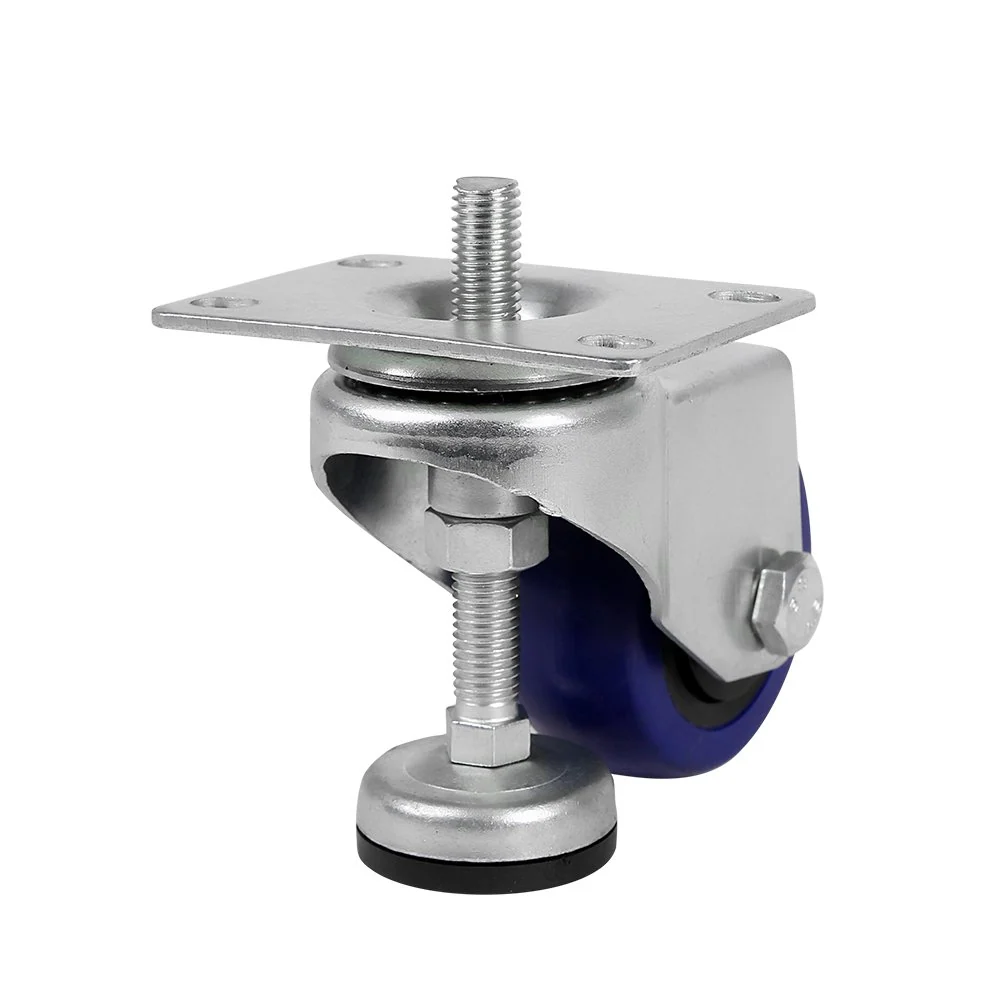

DCP-75 Adjustable Support Caster with Foot Cup
TPE 75mm · 99mm Height · 100kg Load · M12 Screw Rod
75mm
Wheel Ø
100 kg (220 lbs)
Single Load
undefined+mm
Height
Top Plate with M12 Screw Rod
Mounting
Product Overview
The DCP-75 features a 75mm blue TPE wheel for smoother rolling and quieter operation. M12 screw rod enables precise height adjustment. Same compact top plate as DCP-62 for compatibility. Perfect for light-to-medium duty applications where noise reduction and floor protection are priorities.
Technical Specifications
| Model | DCP-75 |
| Wheel Material | TPE (Thermoplastic Elastomer) |
| Wheel Diameter | 75mm |
| Wheel Width | 32mm |
| Installation Height | 99mm |
| Top Plate Size | 94 × 67mm |
| Hole Spacing | 73 × 44mm |
| Screw Hole Size | 12 × 8mm |
| Foot Cup Diameter | 45mm |
| Screw Rod | M12 |
| Mounting Type | Top Plate with M12 Screw Rod |
| Single Load Capacity | 100 kg (220 lbs) |
Key Features
75mm blue TPE wheel for smooth, quiet operation
M12 screw rod for height adjustment
45mm anti-slip foot cup
94×67mm rectangular top plate
Chrome-plated zinc housing
Floor-friendly TPE tread
Typical Applications
Laboratory benches, medical equipment, clean room carts, display systems, light industrial equipment.
